minerva® sink modules
minerva® has a range of undermounted sink modules which are sold as part of a specially fabricated 2250mm worktop with the sink area centrally positioned.
Our sink modules come complete with your choice of undermounted sink in steel or white acrylic.
In addition, each module is supplied with the necessary sink waste fittings and pipework – all you have to do is add the tap.
Choose from a single bowl, a super large bowl, a 1.5 bowl duo or a 1.5 designer bowl in either steel or white acrylic. All options are supplied either left or right-handed bowl.

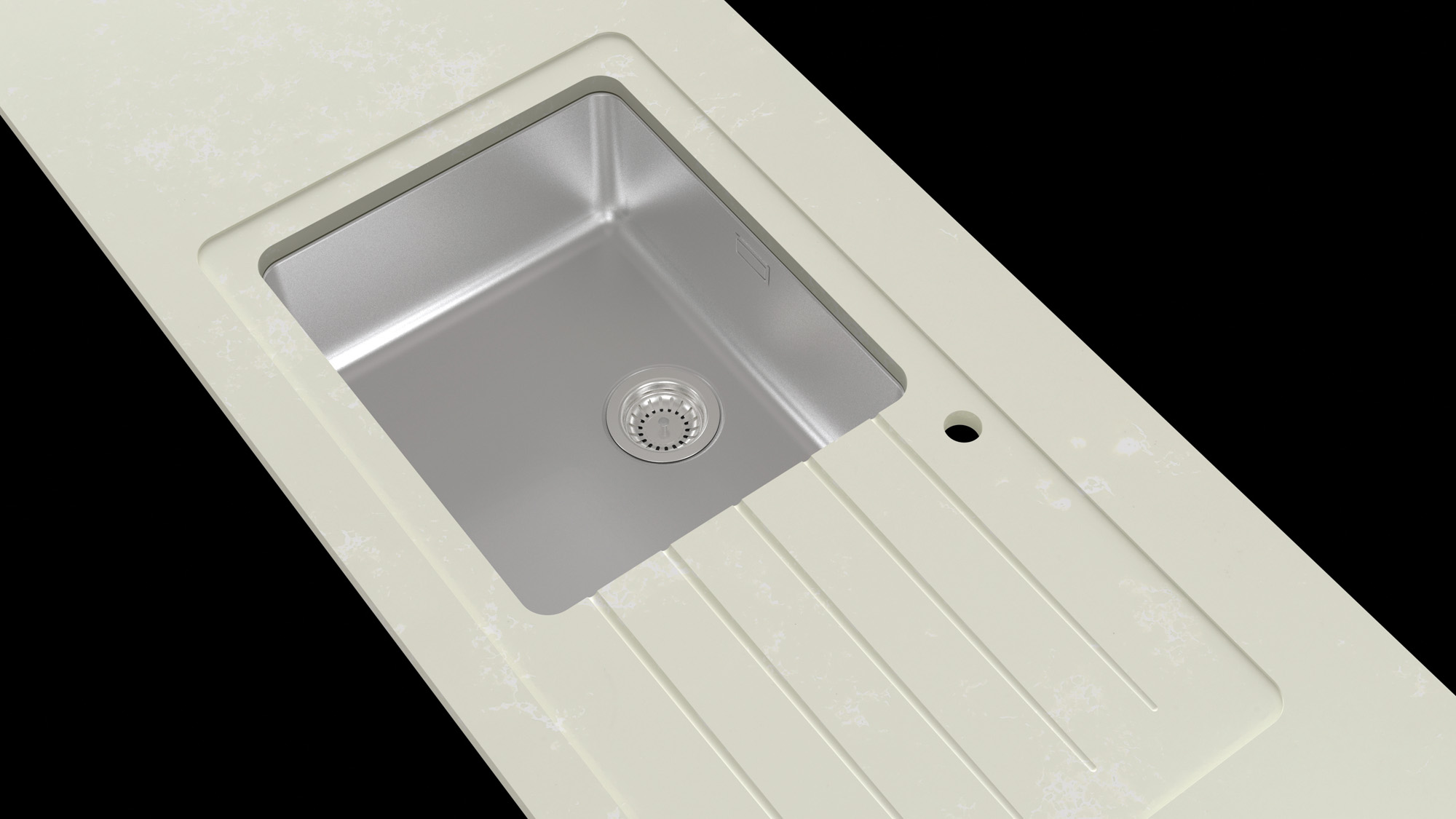

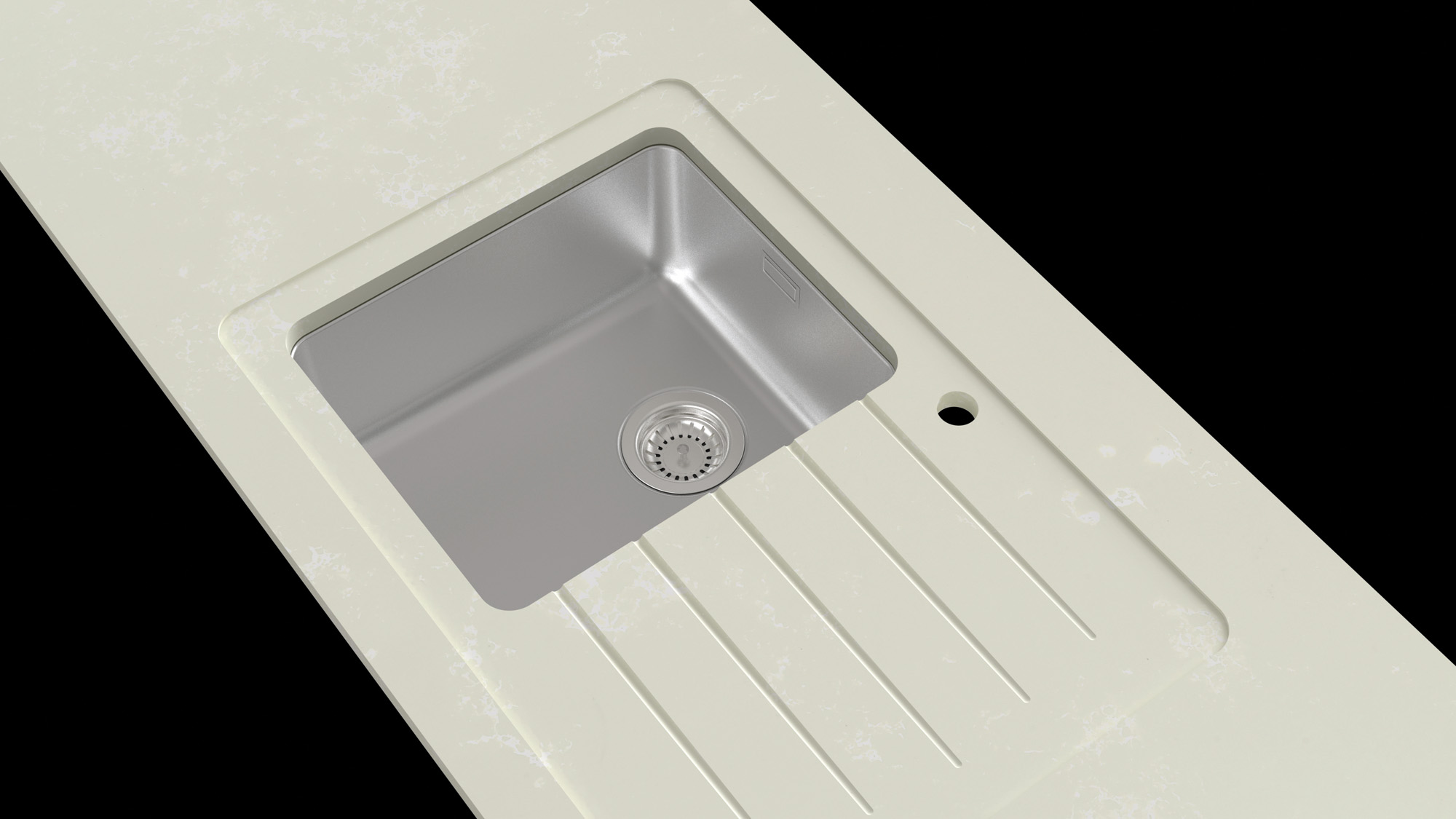

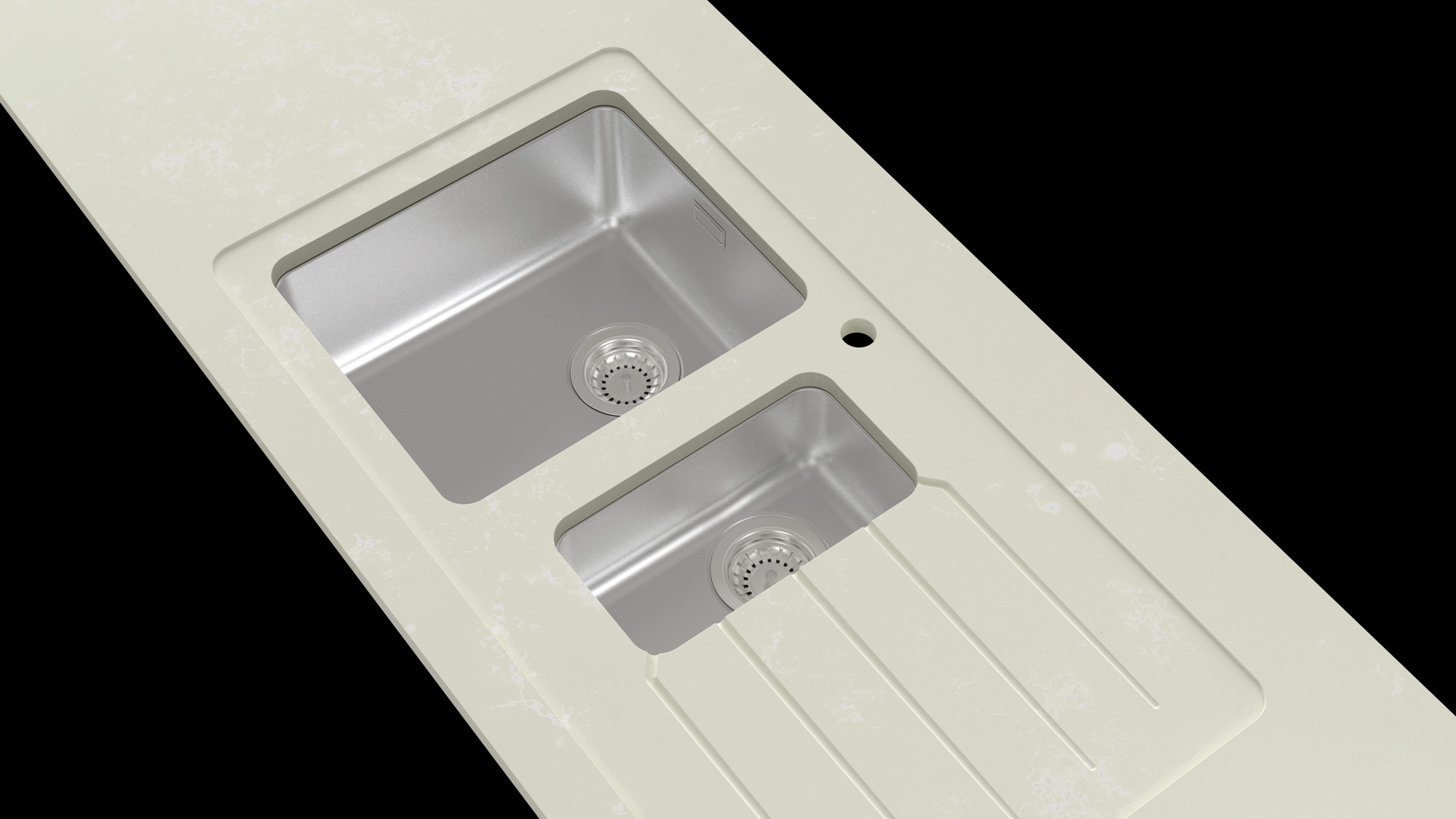

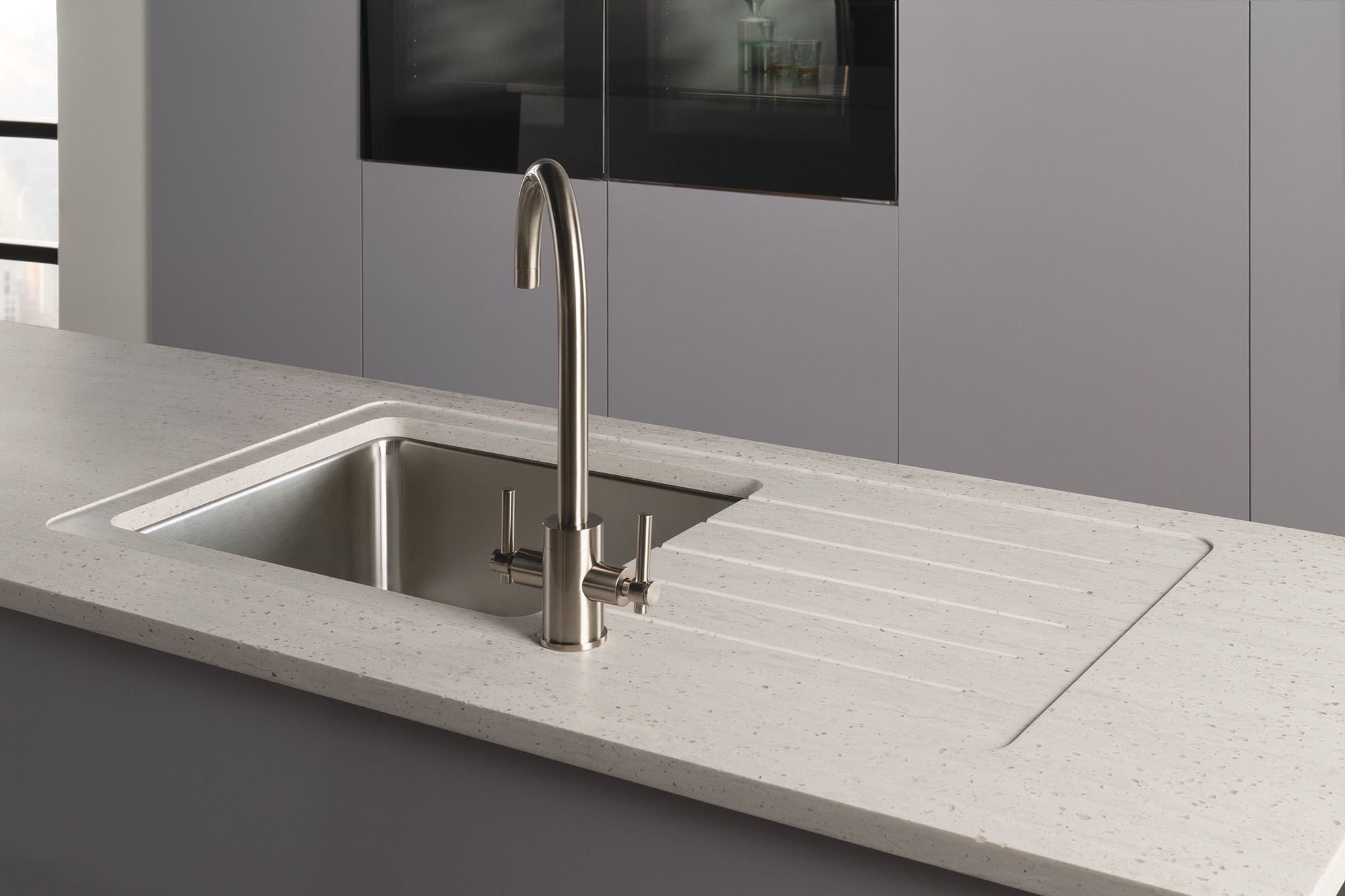

Steel 25mm internal radius undermount sinks
This is our original range of under-mounted steel sinks with a 25mm corner radius. These sink modules have a recessed area around the sink cut-out and include drainer grooves.
- 25mm radius corners
- Plumbing kit supplied
- Boiling tap compatible
- Fitting clips & sealant supplied

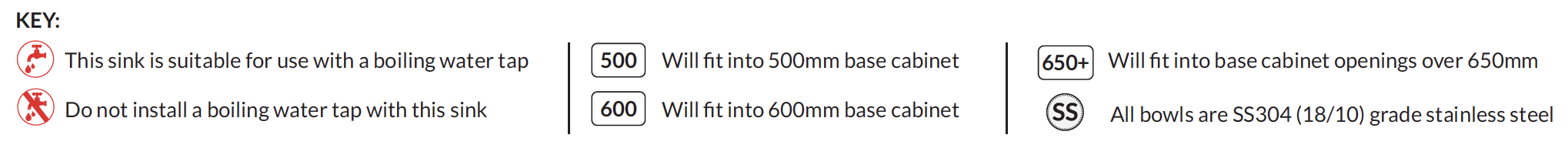

KEY:
This sink is suitable for use with a boiling water tap
Do not install a boiling water tap with this sink
|
Will fit into 500mm base cabinet
Will fit into 600mm base cabinet
|
Will fit into base cabinet openings over 650mm
All bowls are SS304 (18/10) grade steel

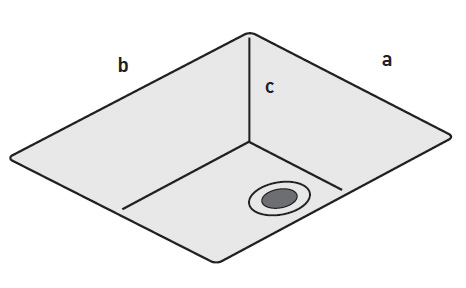

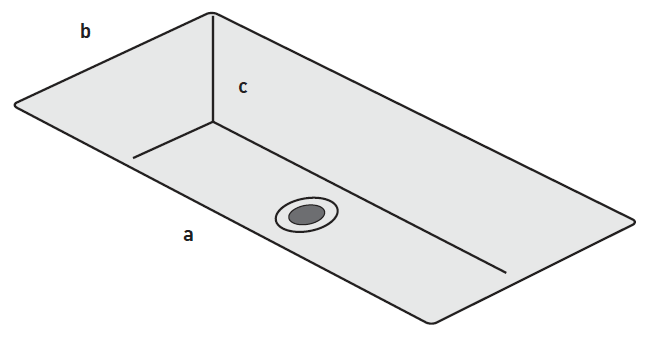

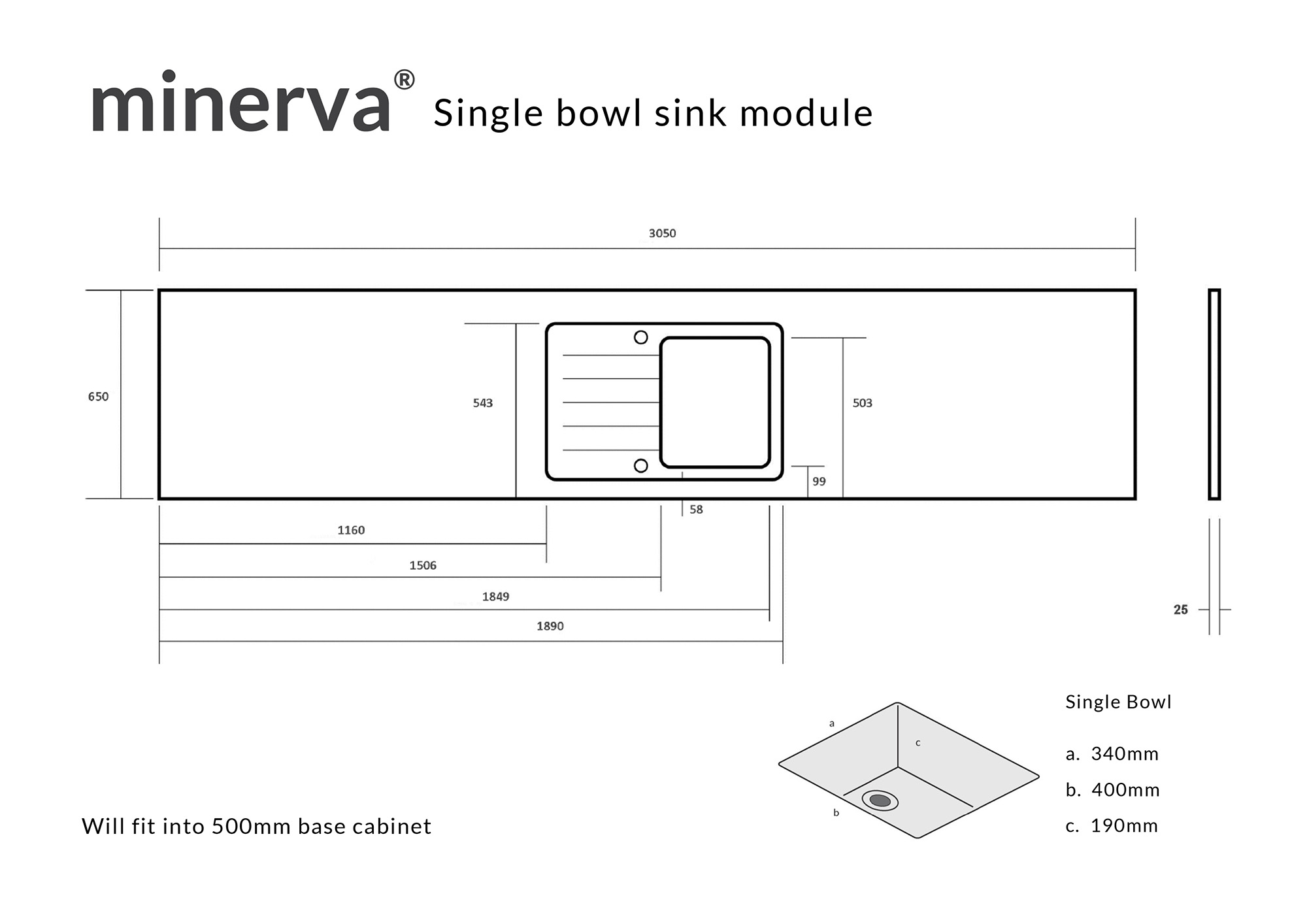

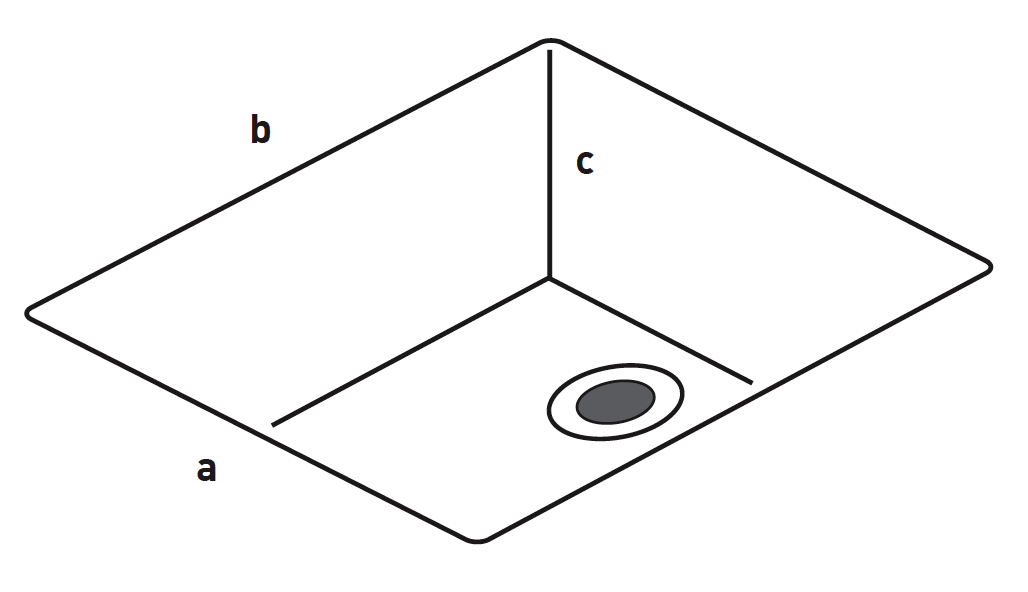

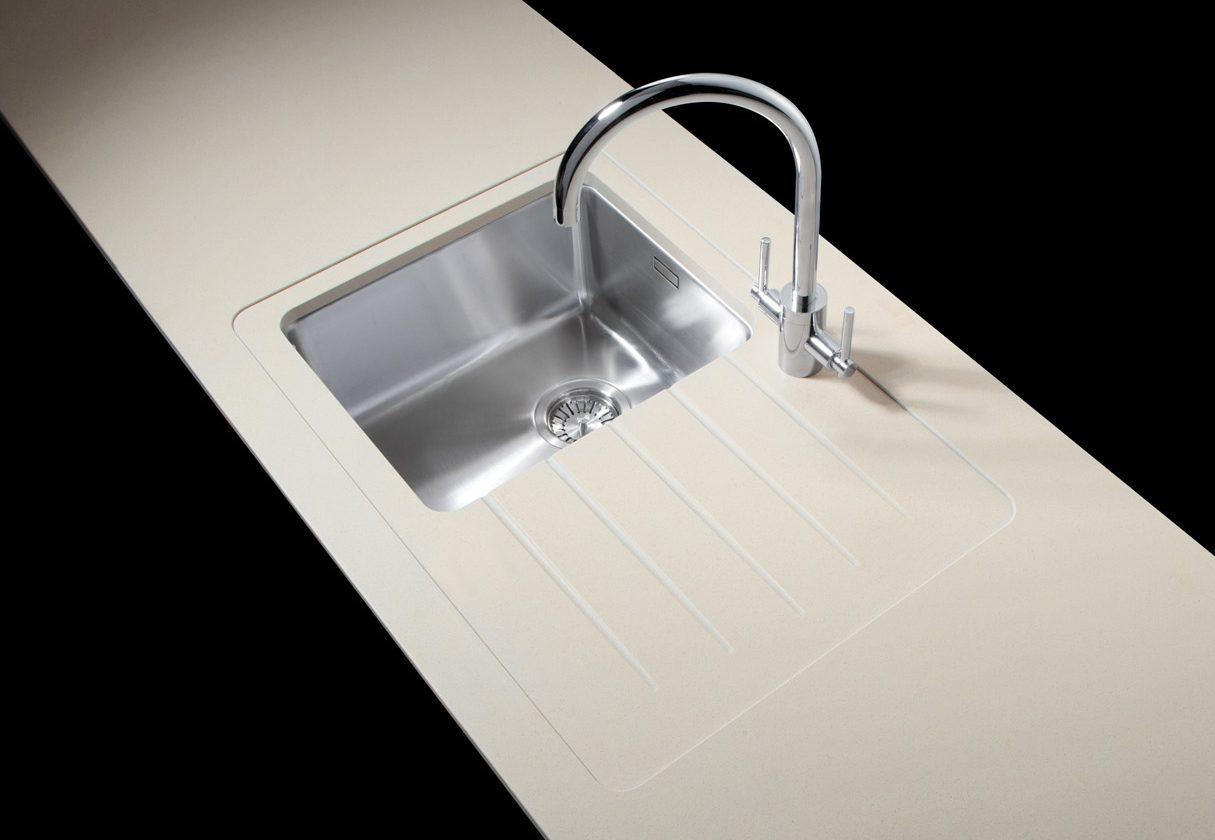

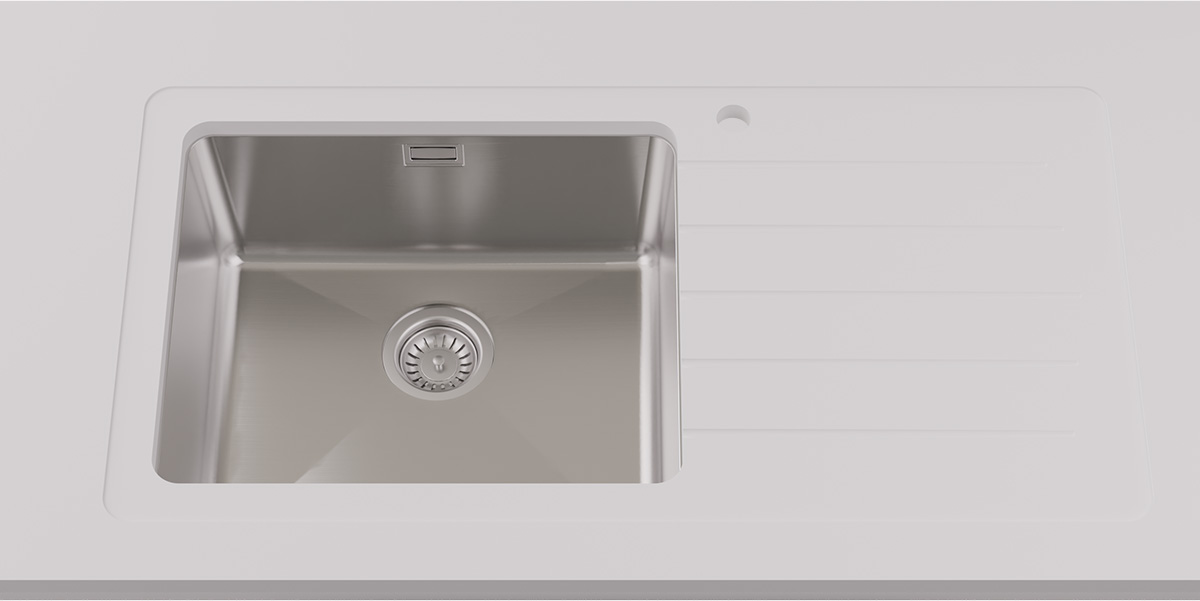

single bowl
minerva® single bowl with recessed drainer area.
Pre drilled for tap. Includes brushed steel bowl, basket strainer, fitting clips and sealant.

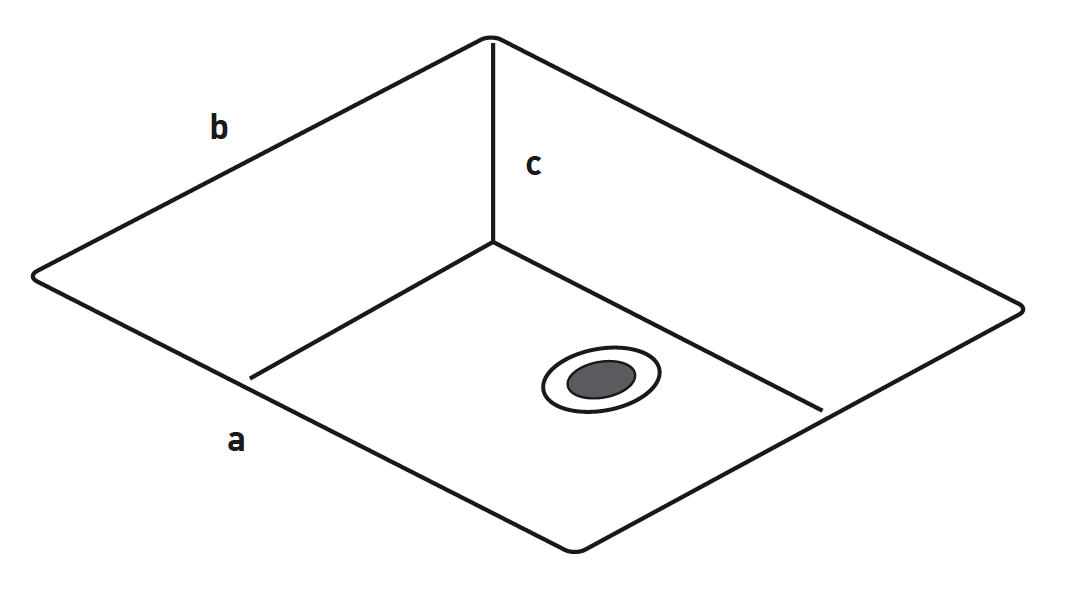

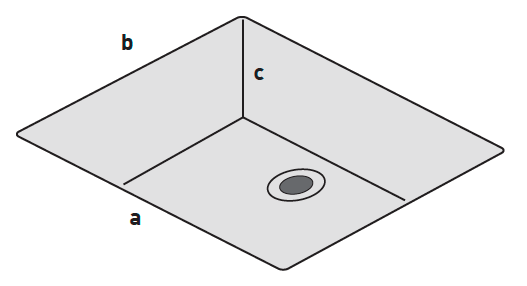

a. 340mm
b. 400mm
c. 190mm

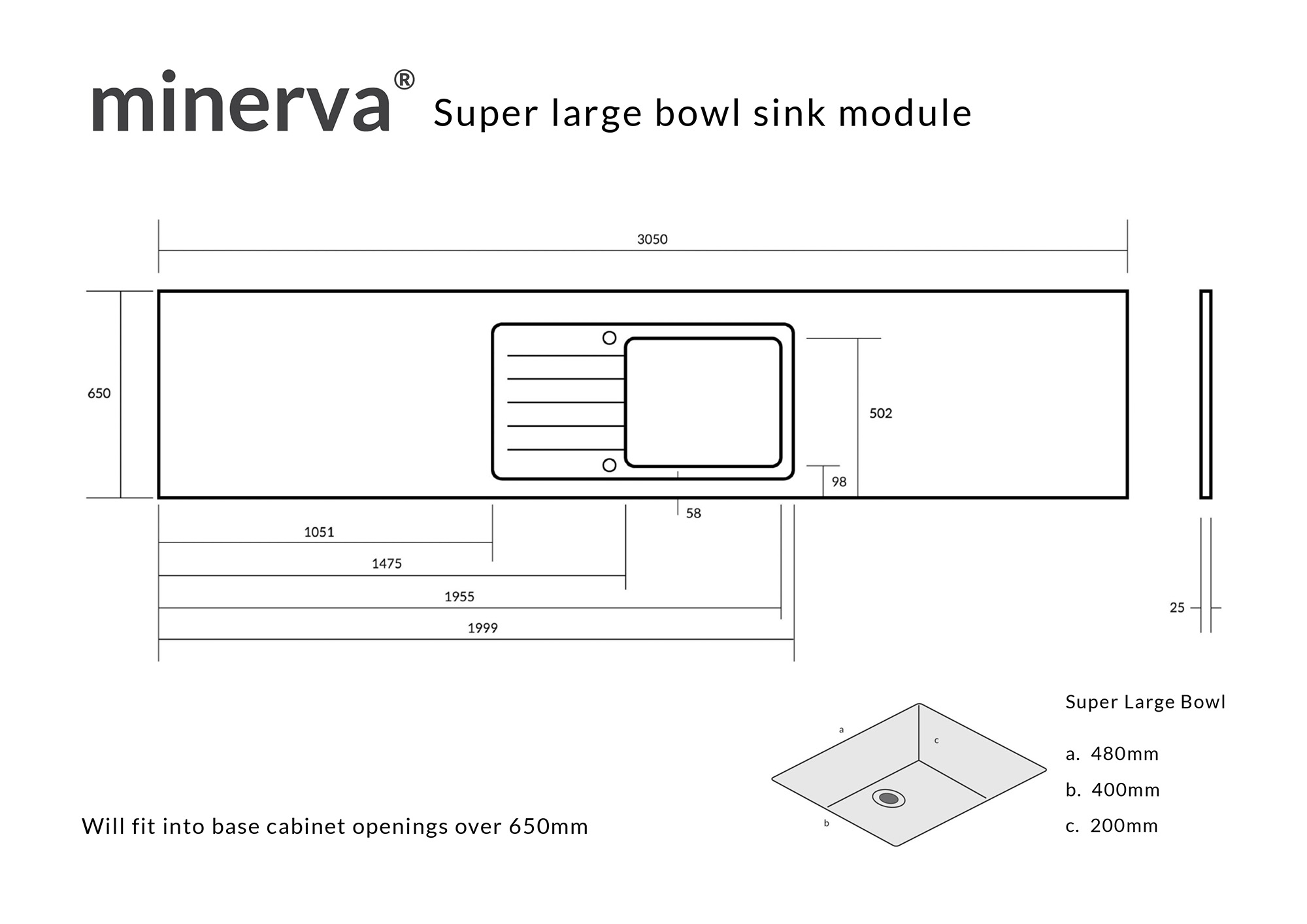

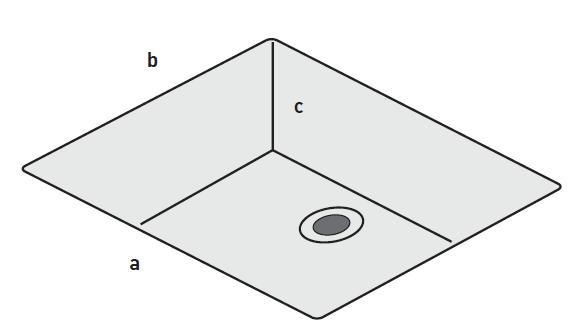

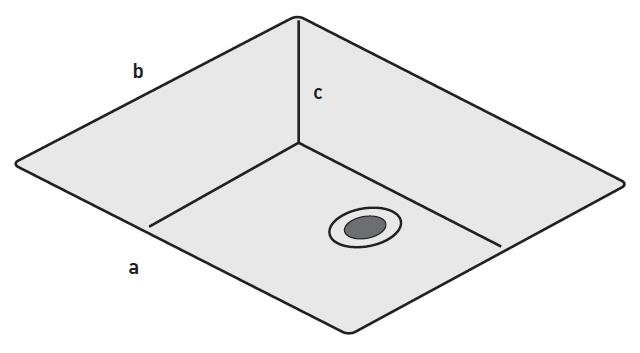

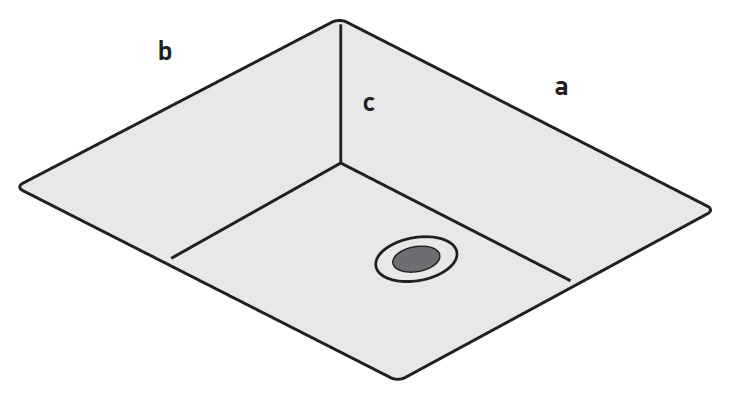

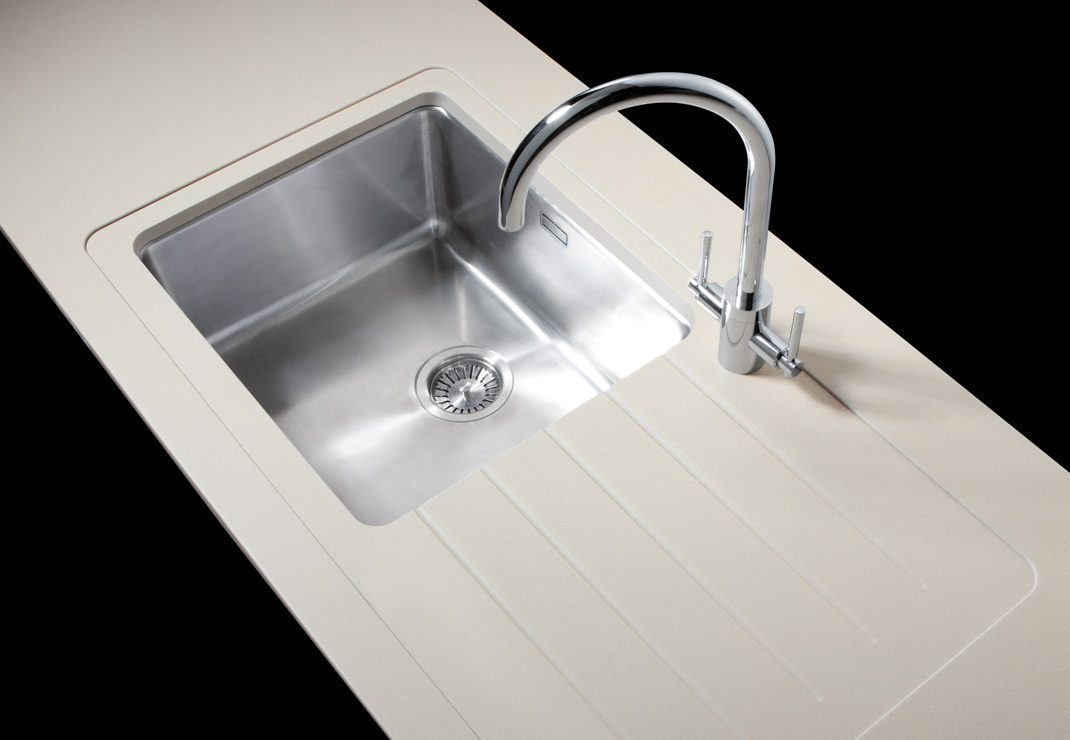

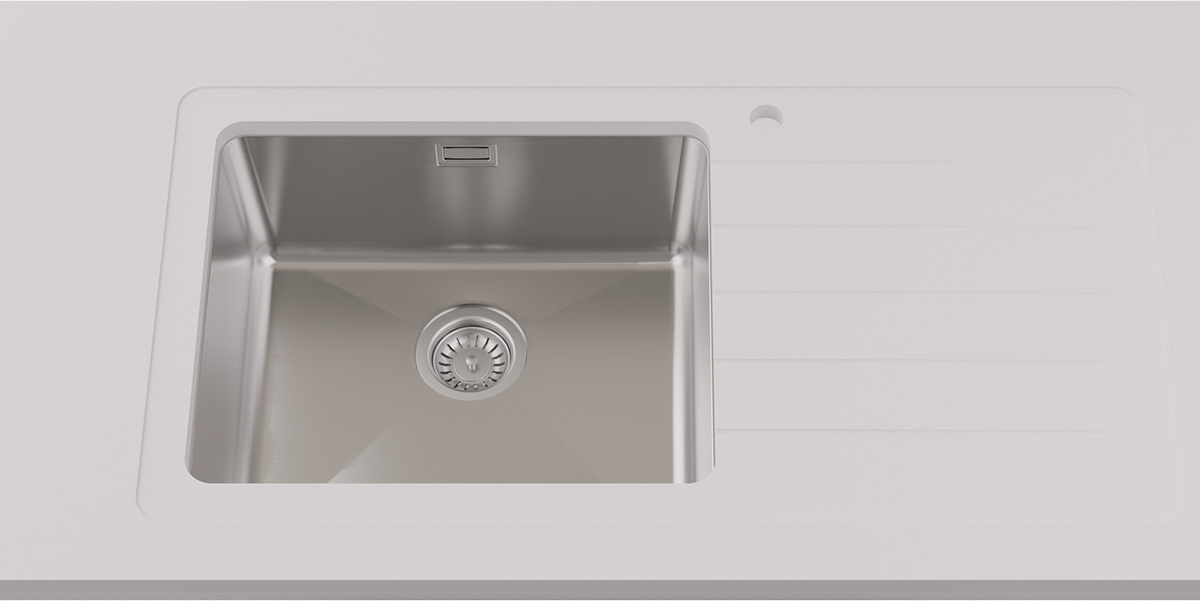

super large bowl
minerva® super large bowl with recessed drainer area.
Pre drilled for tap. Includes brushed steel bowl, basket strainer, fitting clips and sealant.
a. 480mm
b. 400mm
c. 200mm

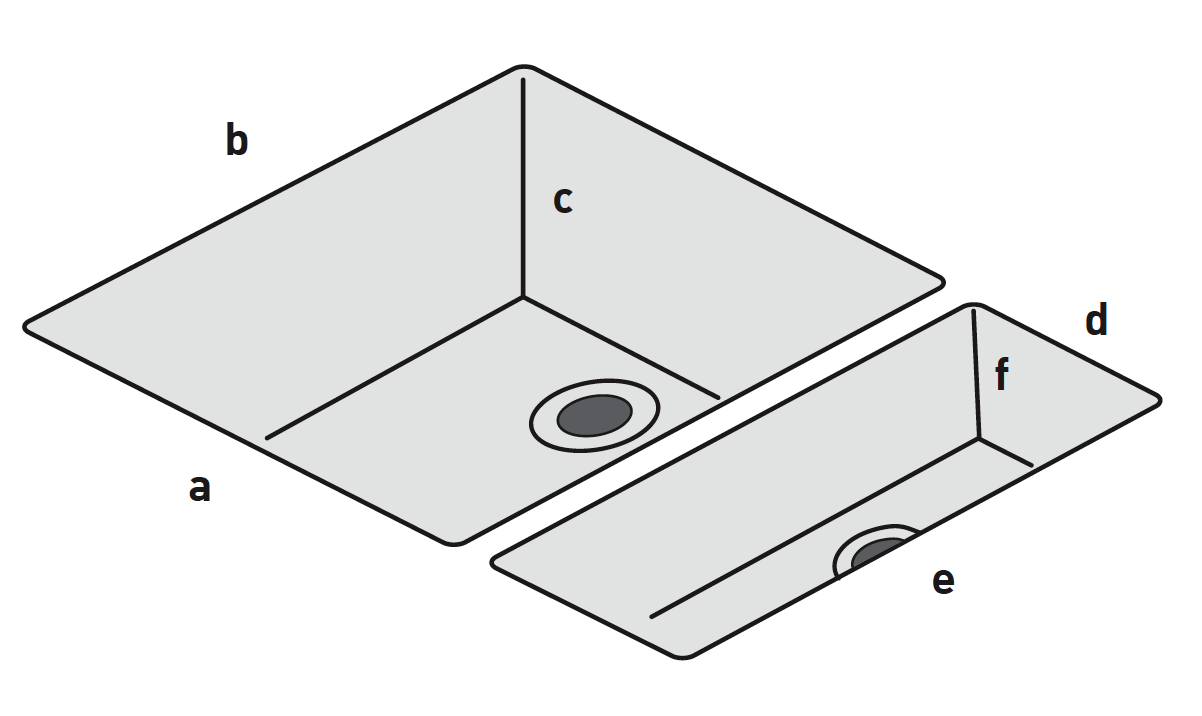

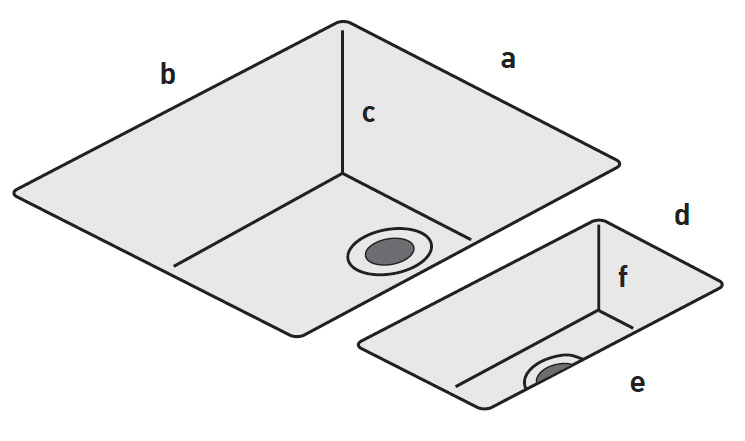

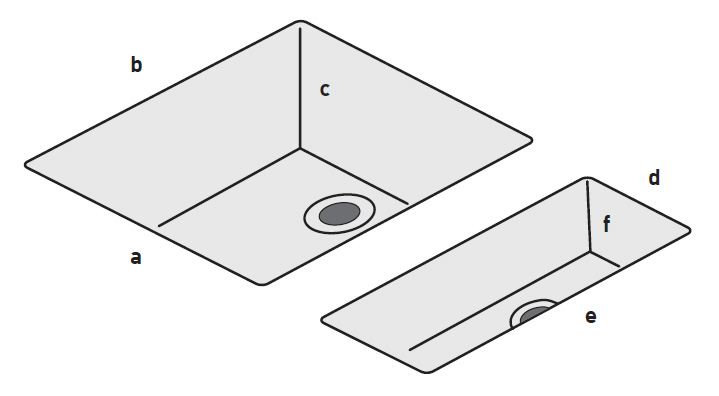

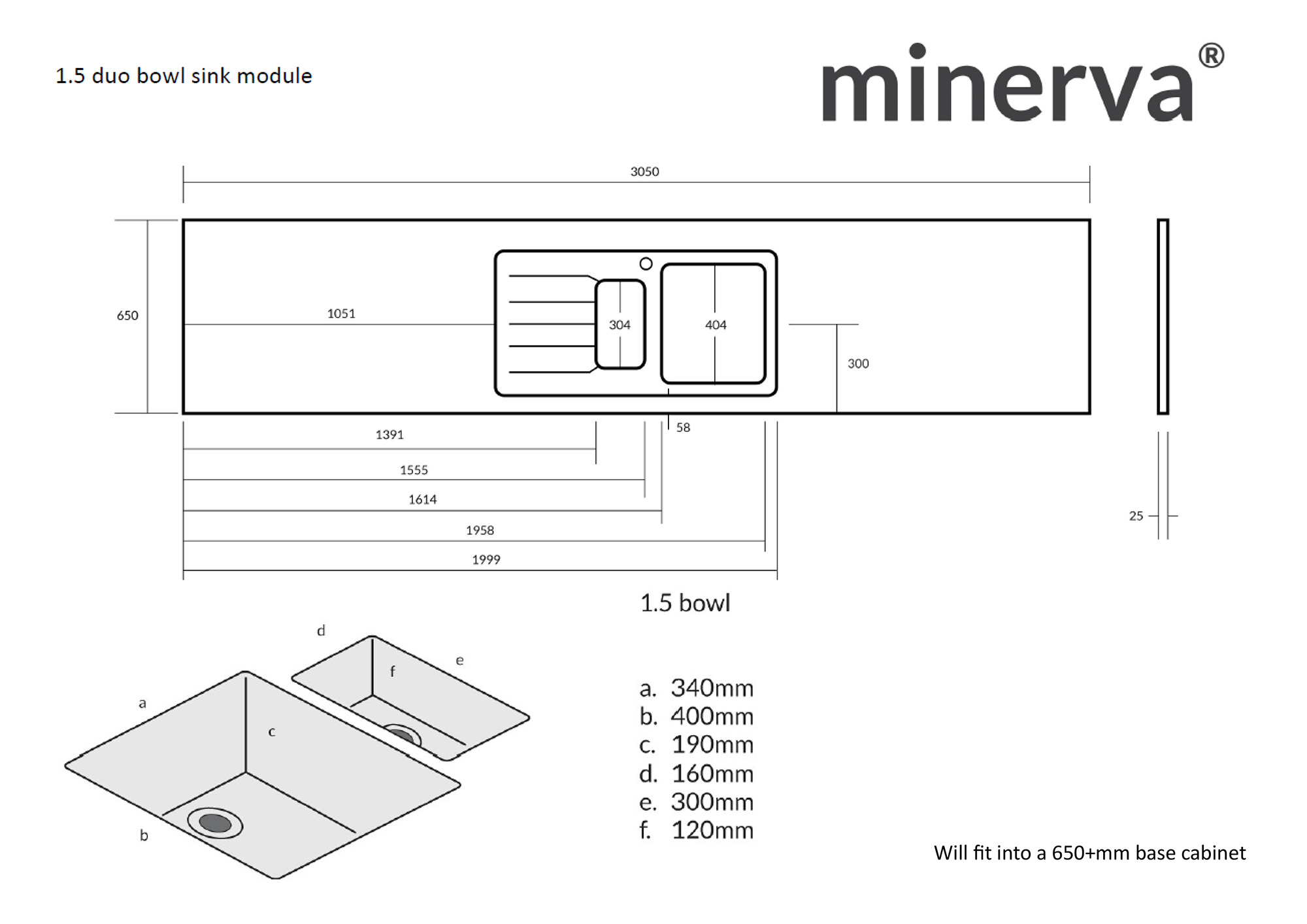

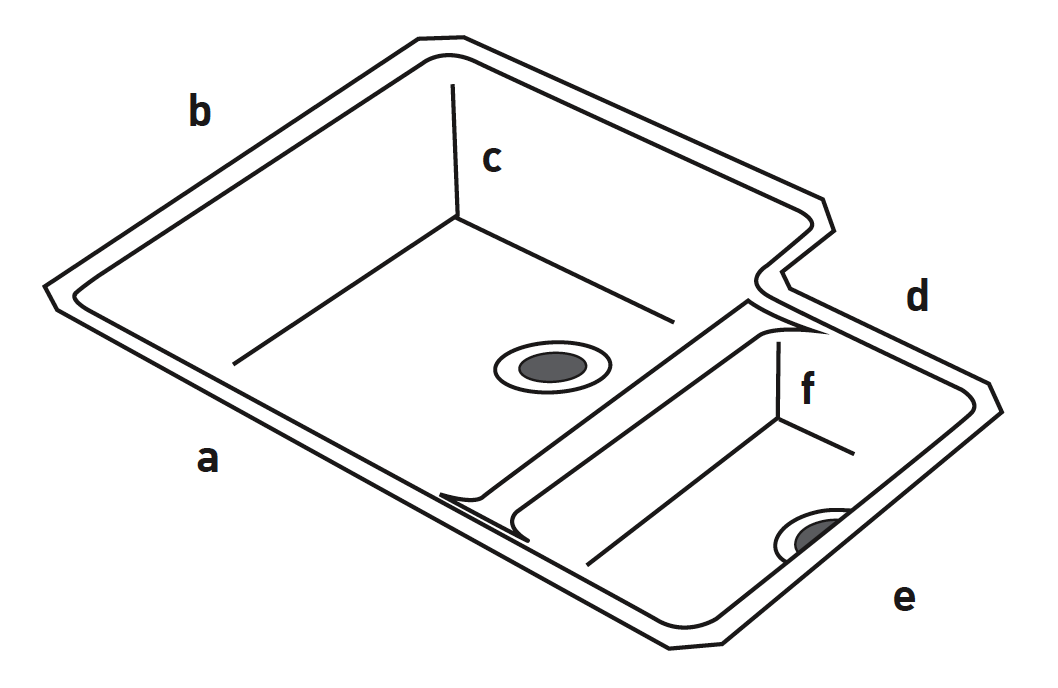

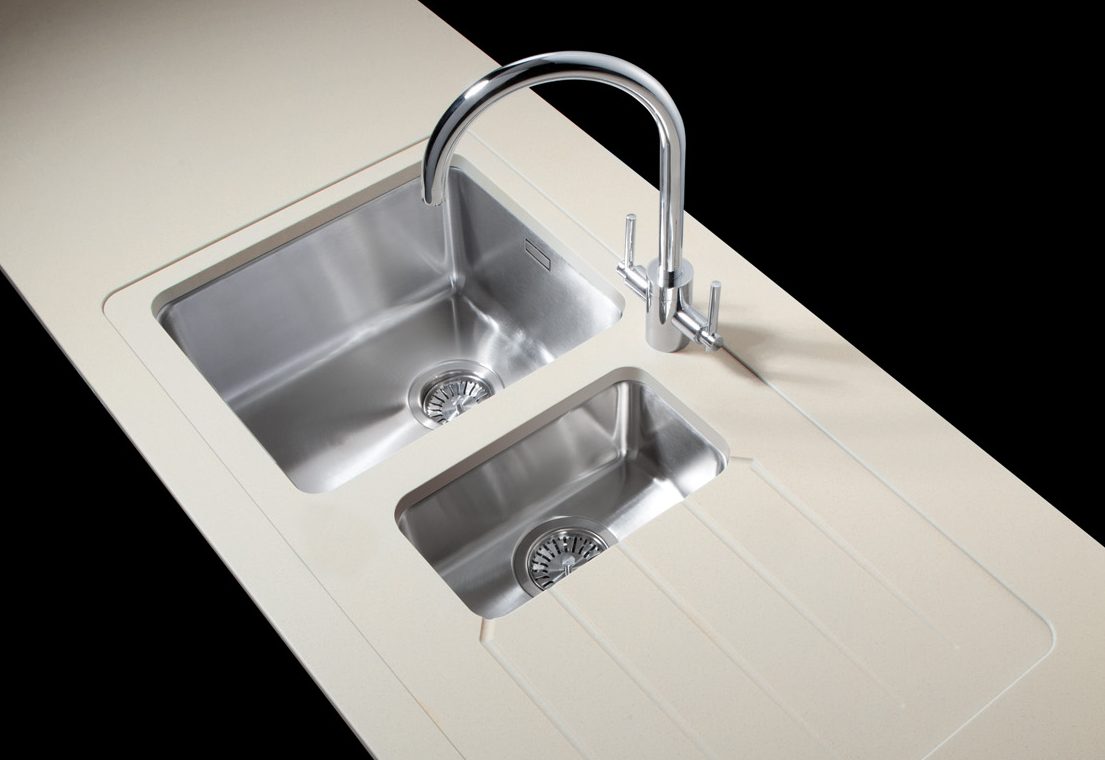

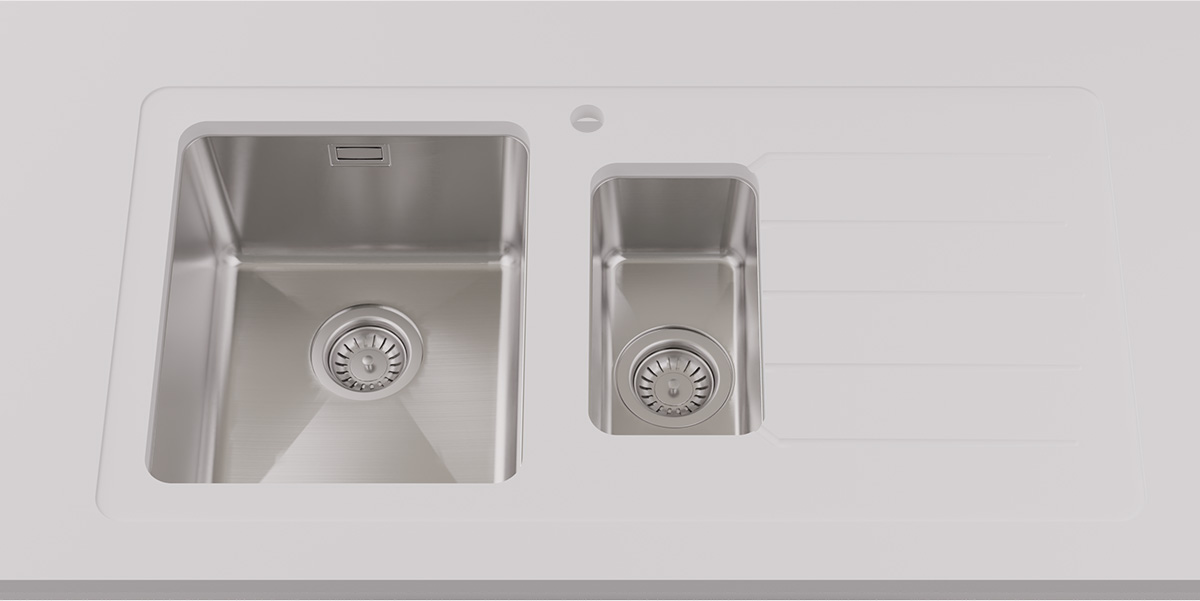

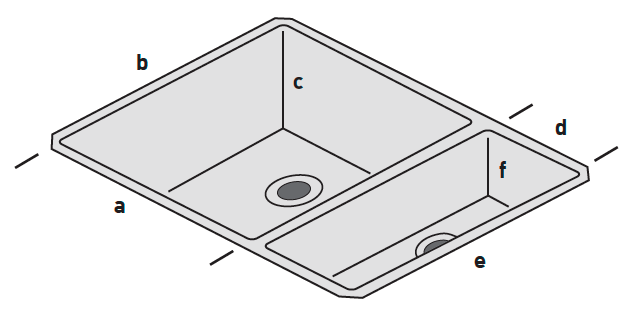

1.5 duo bowl
minerva® 1.5 bowl with recessed drainer area.
Pre drilled for tap. Includes brushed steel main bowl and separate small bowl, basket strainers, fitting clips and sealant.
a. 340mm
b. 400mm
c. 190mm
d. 160mm
e. 300mm
f. 120mm

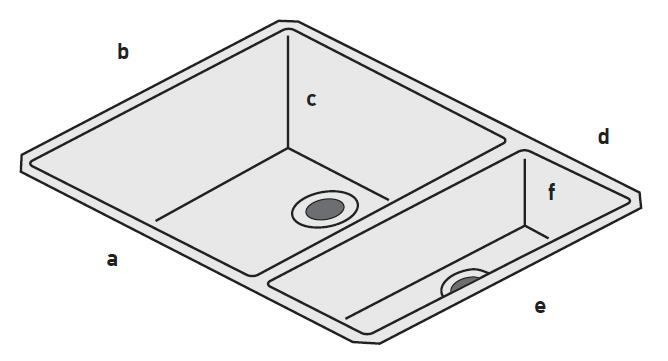

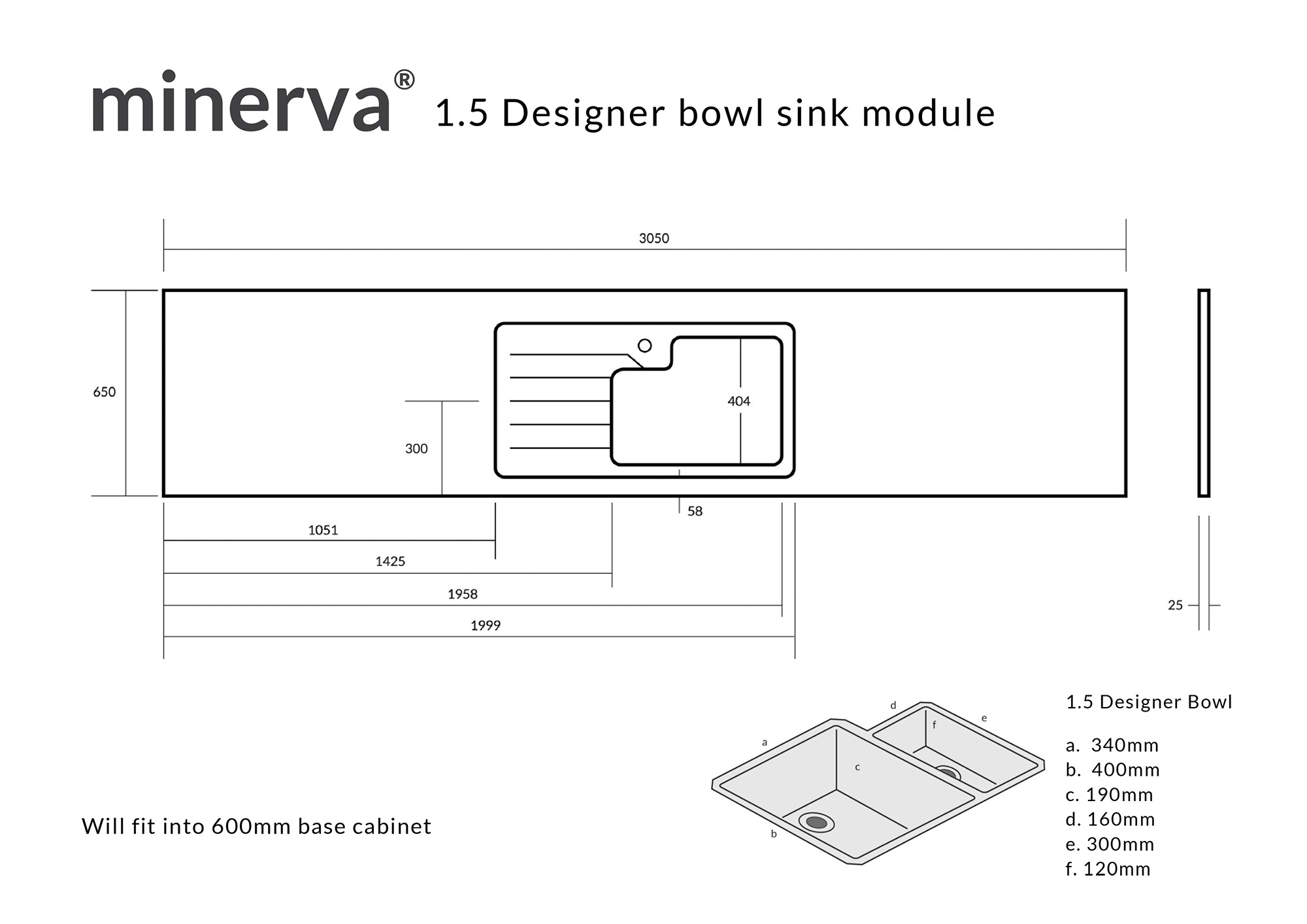

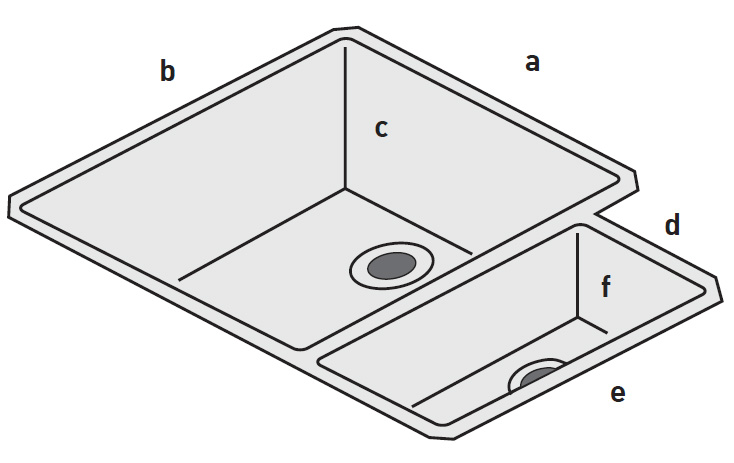

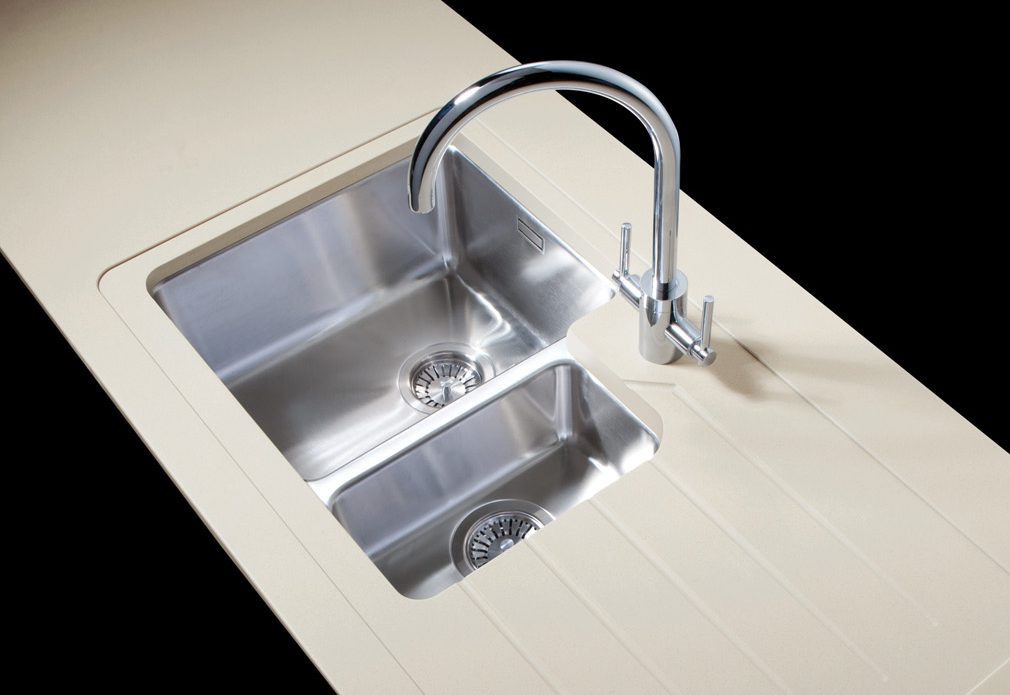

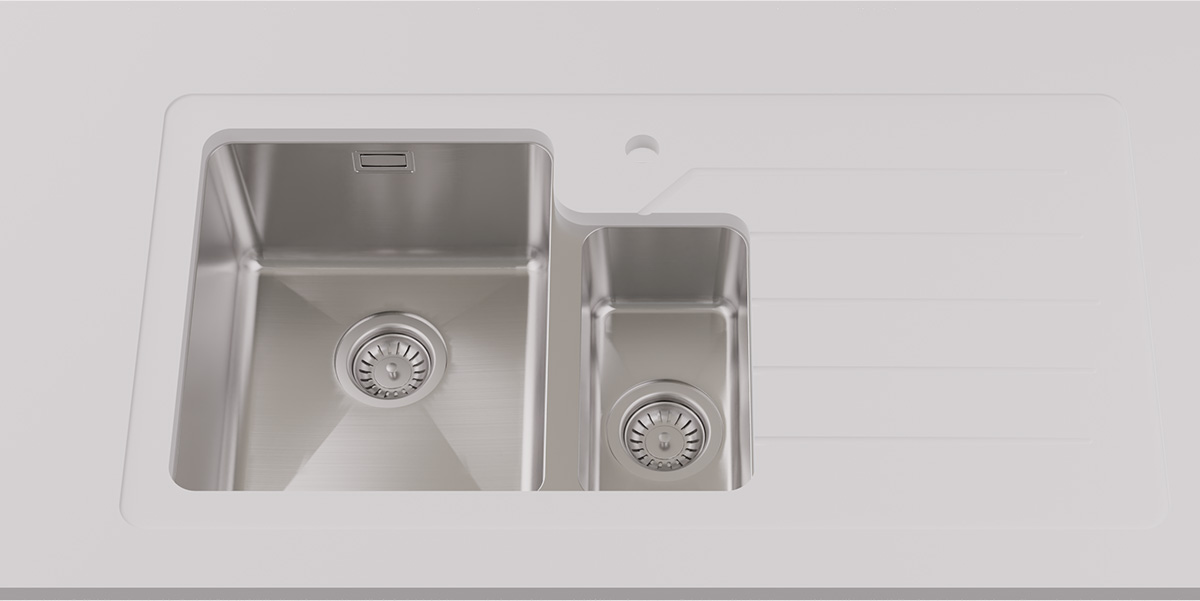

1.5 designer bowl
minerva® 1.5 designer bowl with recessed drainer area.
Pre-drilled for tap. Includes combined 1.5 bowl brushed steel sink, basket strainers, fitting clips and sealant.
a. 340mm
b. 400mm
c. 190mm
d. 160mm
e. 300mm
f. 120mm

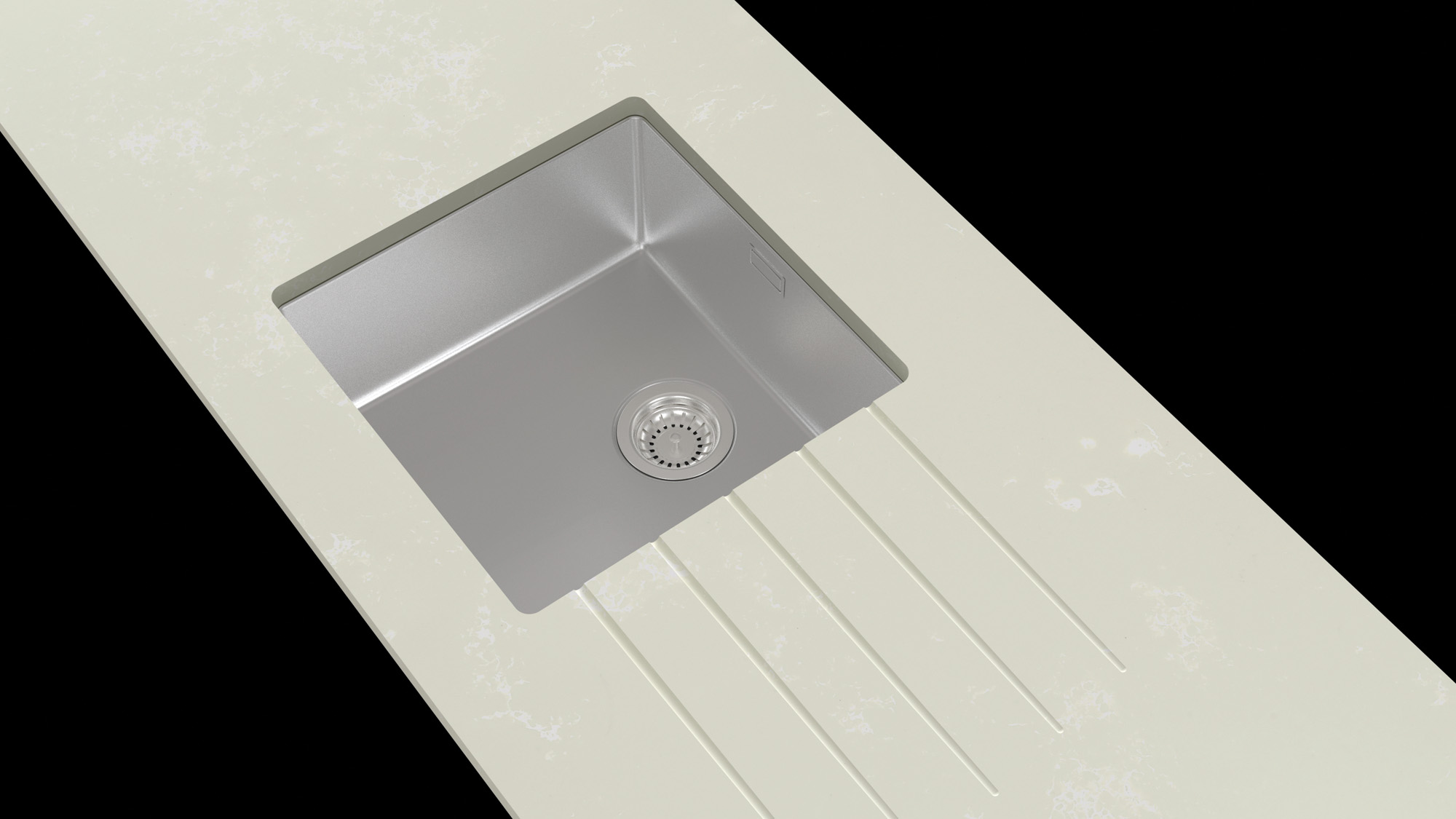

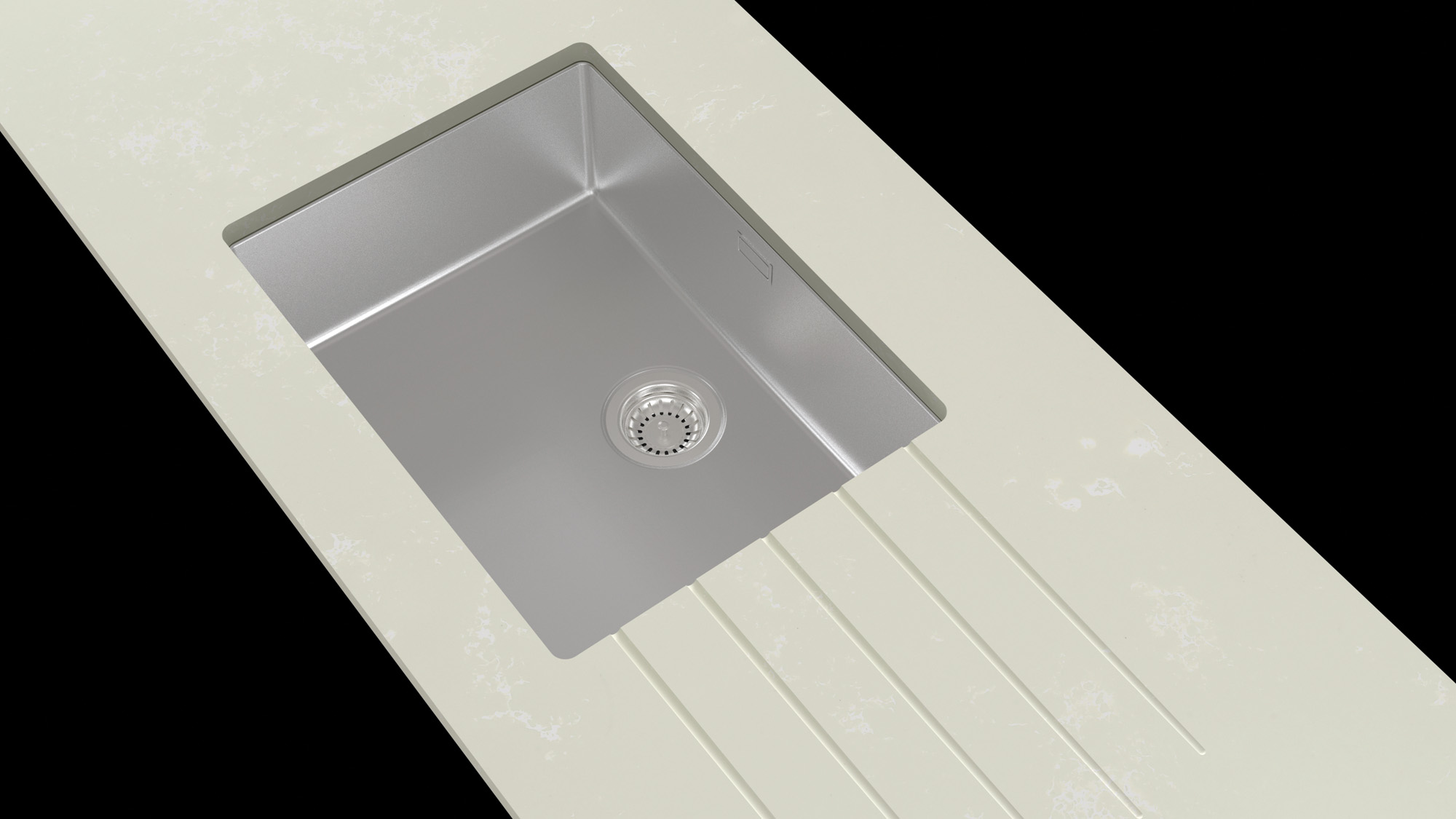

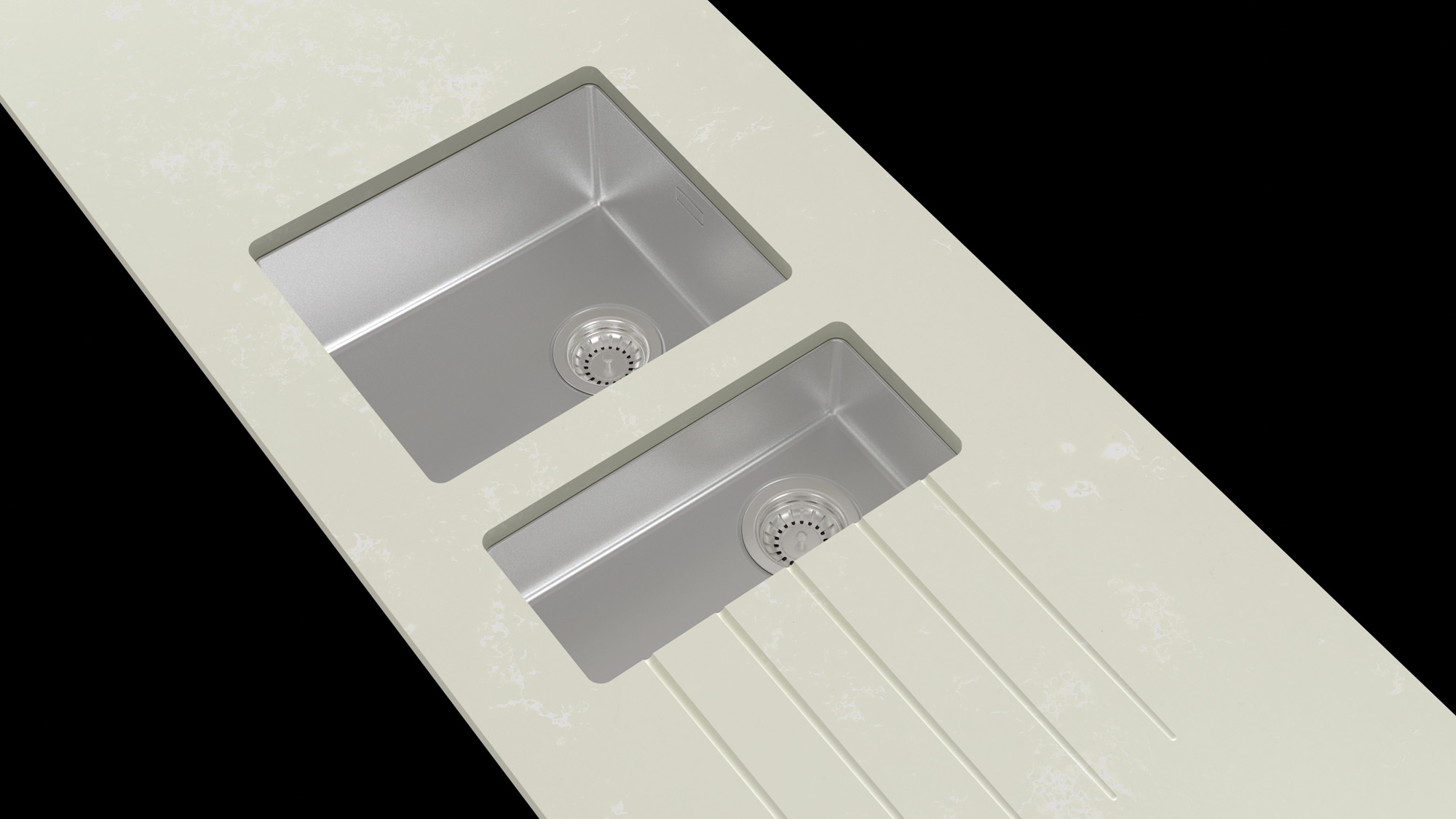

Steel 10mm internal radius undermount sinks
For a more contemporary feel look no further than our 10mm radius steel undermounts. The tighter 10mm radius and pressed drainer channels give a clean modern feel and the simple drainer groove finish allows for the tap to be located to your own requirements.
- 10mm radius corners
- Plumbing kit supplied
- Boiling tap compatible
- Fitting clips & sealant supplied
KEY:
This sink is suitable for use with a boiling water tap
Do not install a boiling water tap with this sink
|
Will fit into 500mm base cabinet
Will fit into 600mm base cabinet
|
Will fit into base cabinet openings over 650mm
All bowls are SS304 (18/10) grade steel

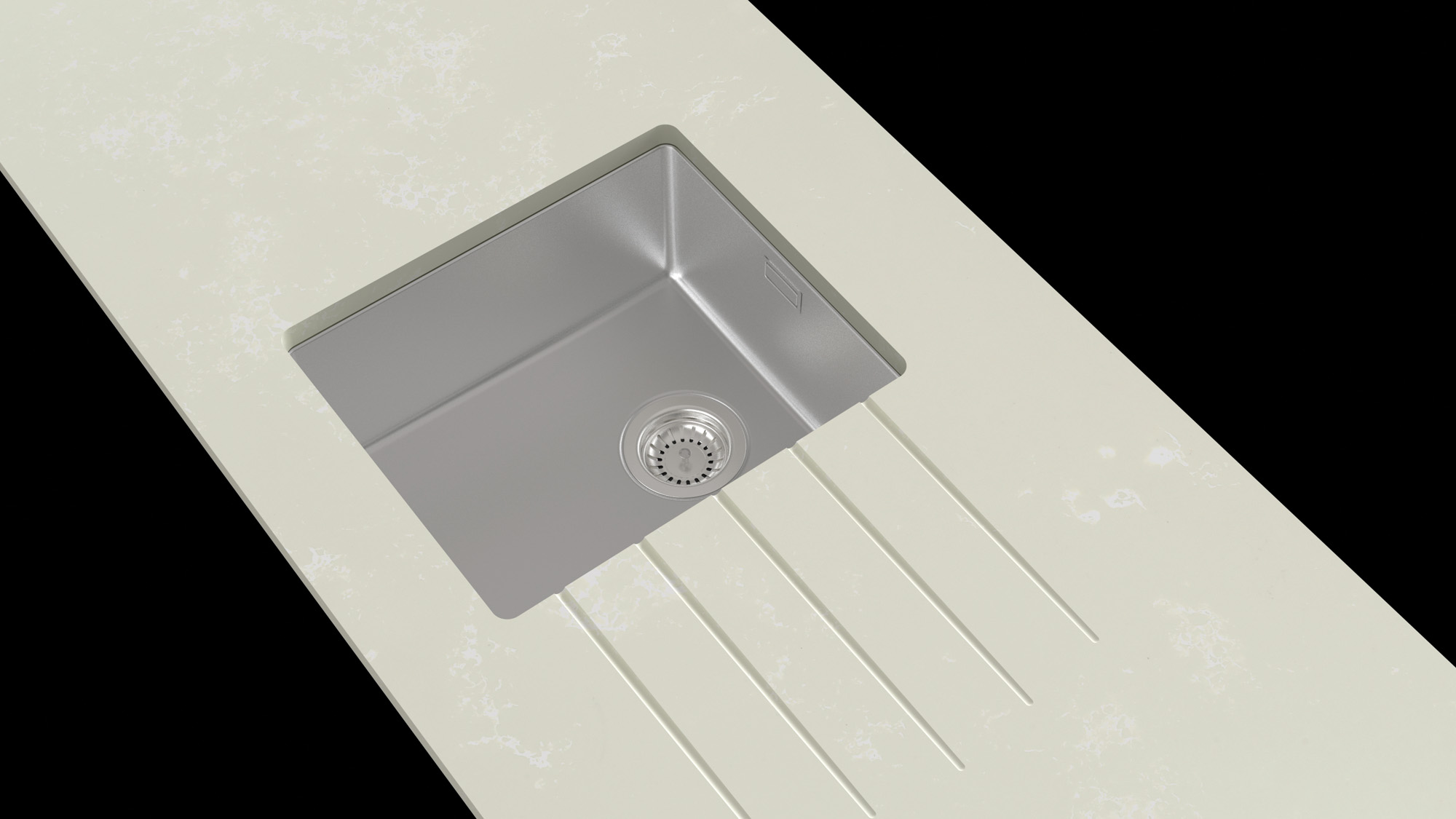

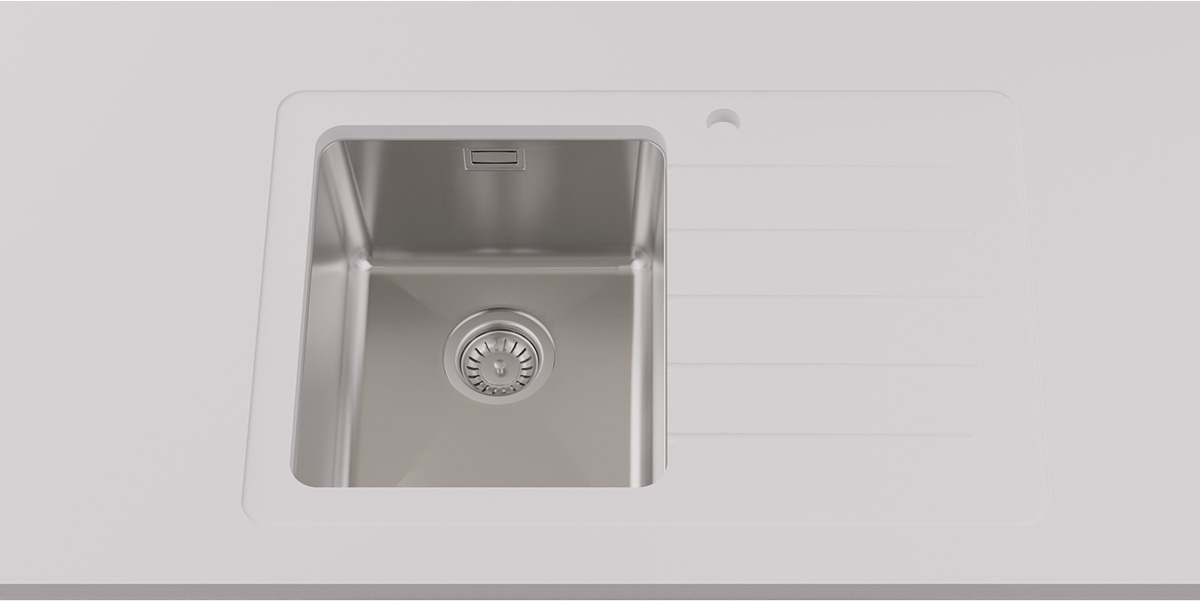

single bowl
a. 340mm
b. 400mm
c. 190mm

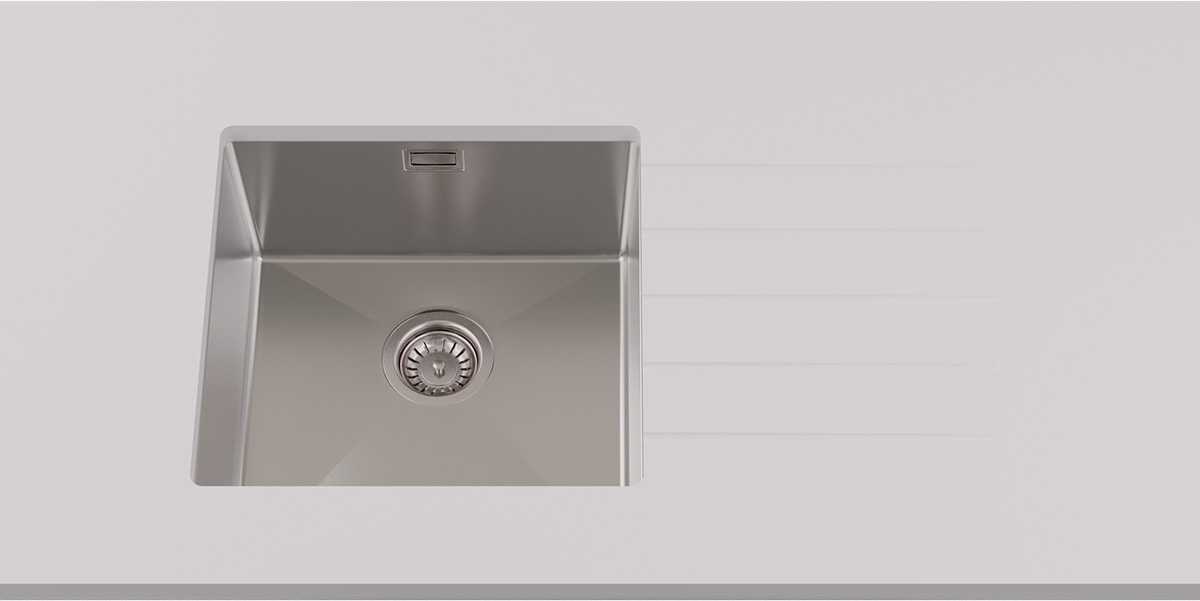

super large bowl
a. 410mm
b. 400mm
c. 190mm

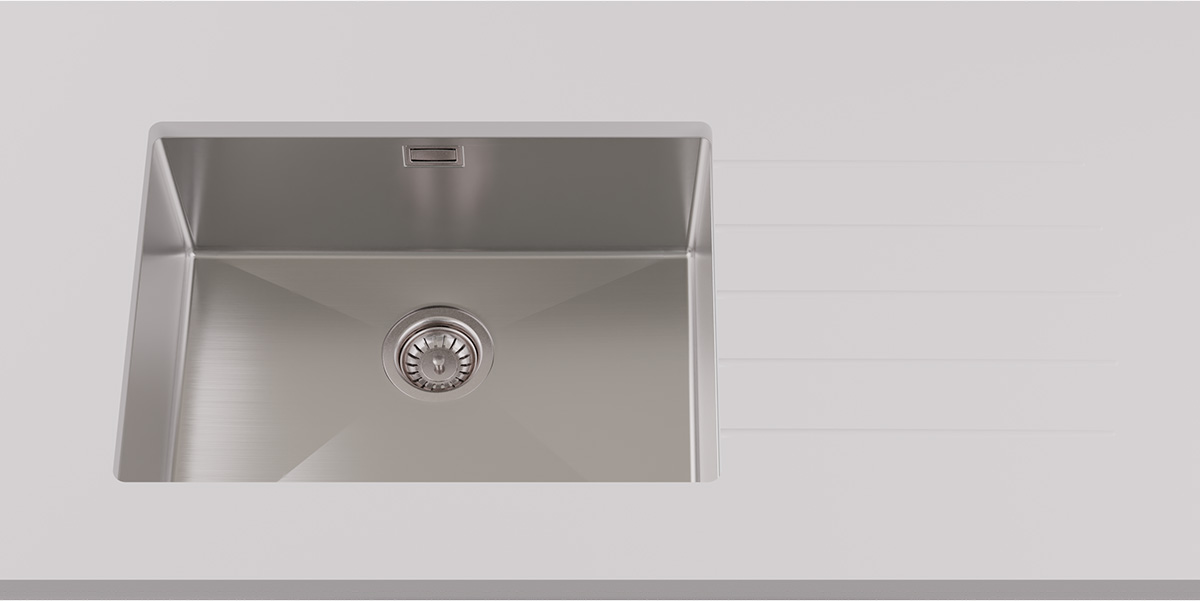

Ultra large bowl
a. 550mm
b. 400mm
c. 190mm

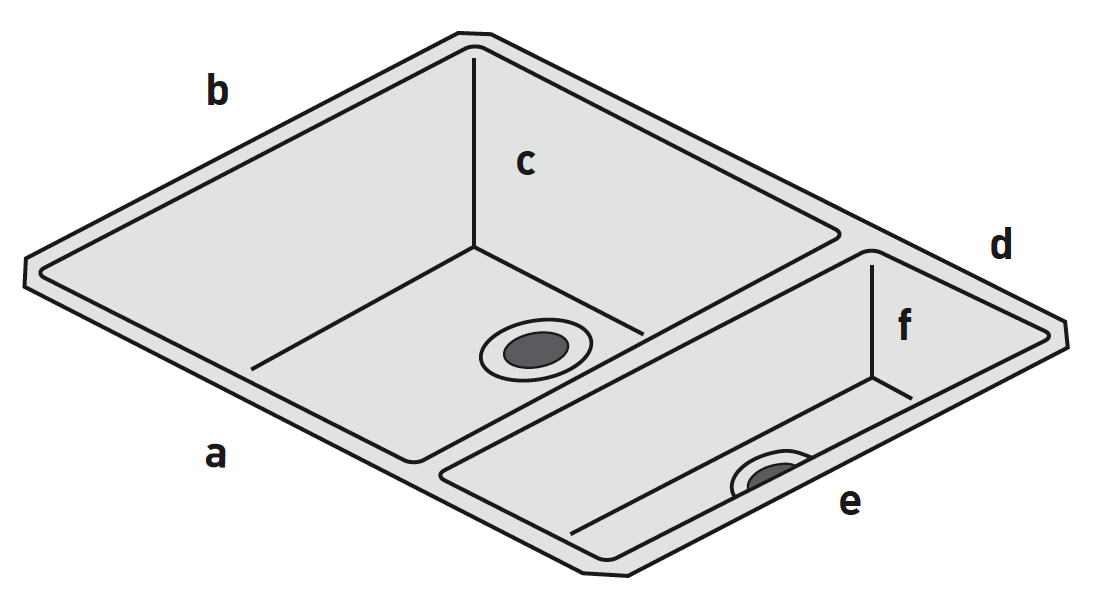

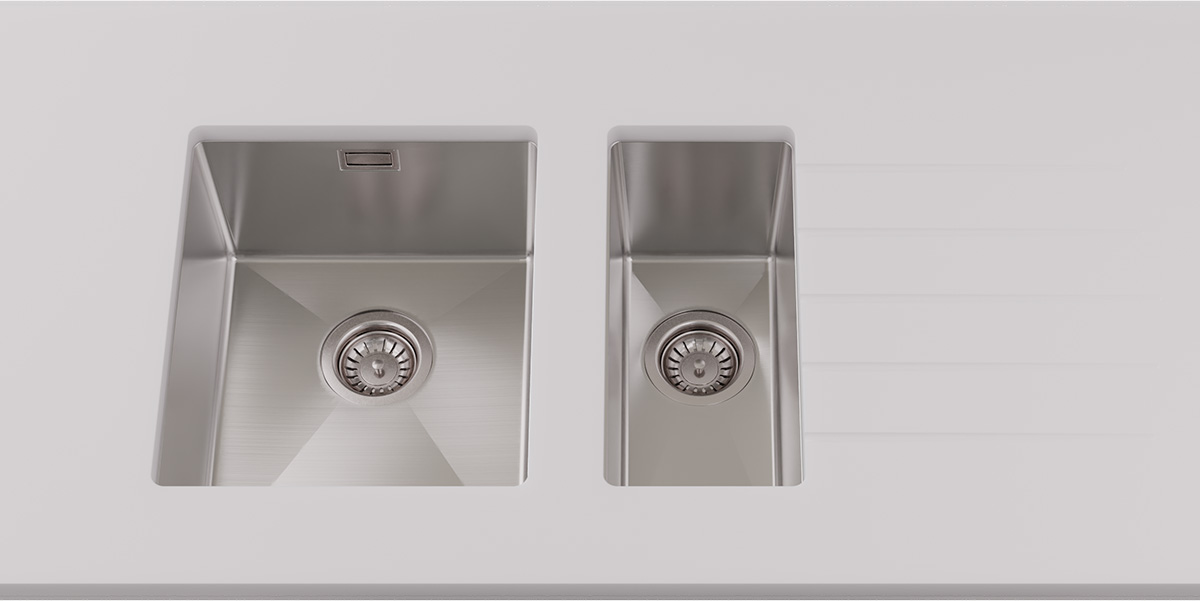

1.5 Duo bowl
a. 340mm
b. 400mm
c. 190mm
d. 180mm
e. 400mm
f. 125mm

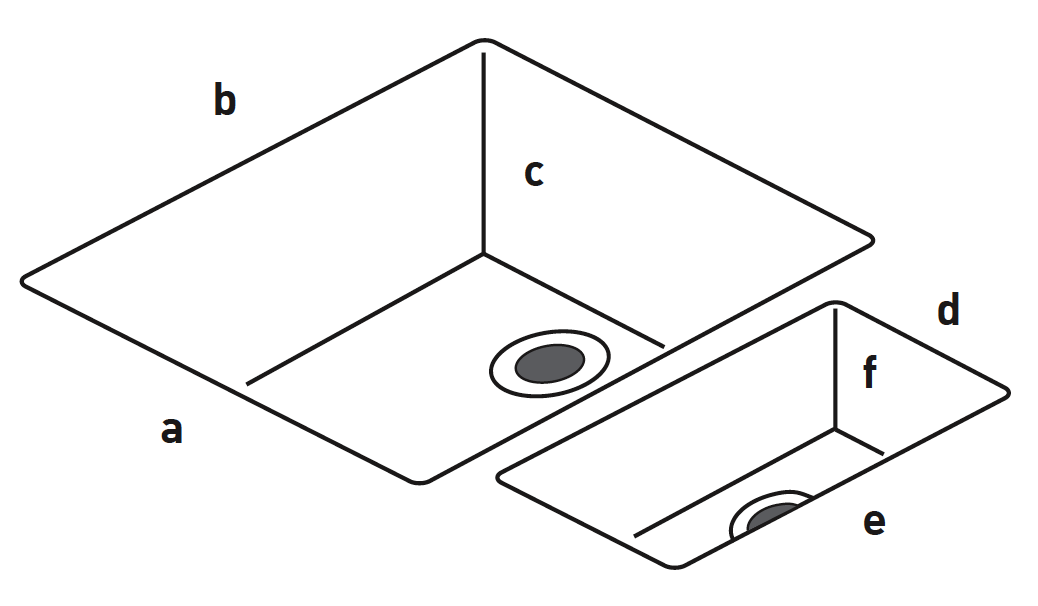

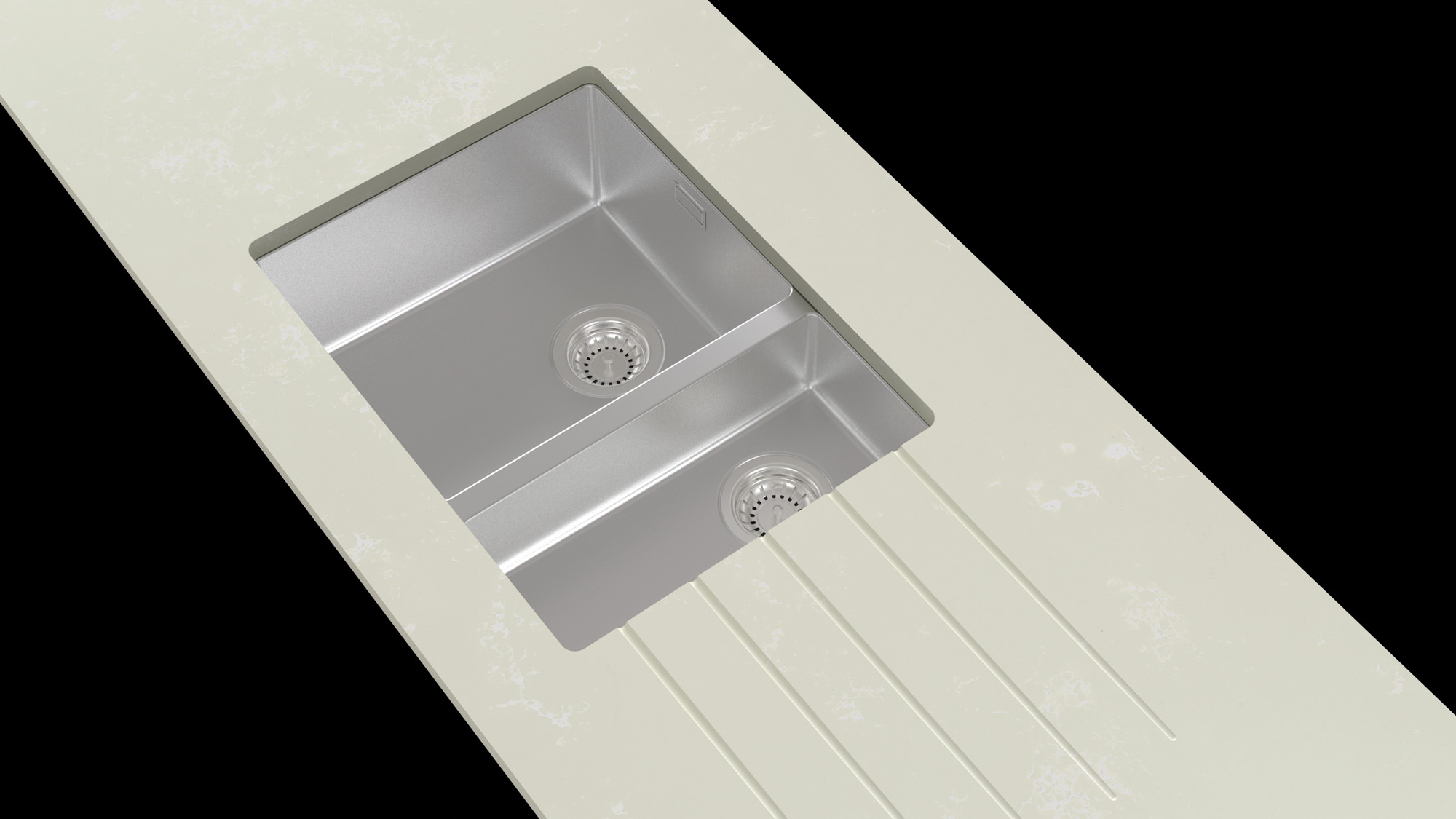

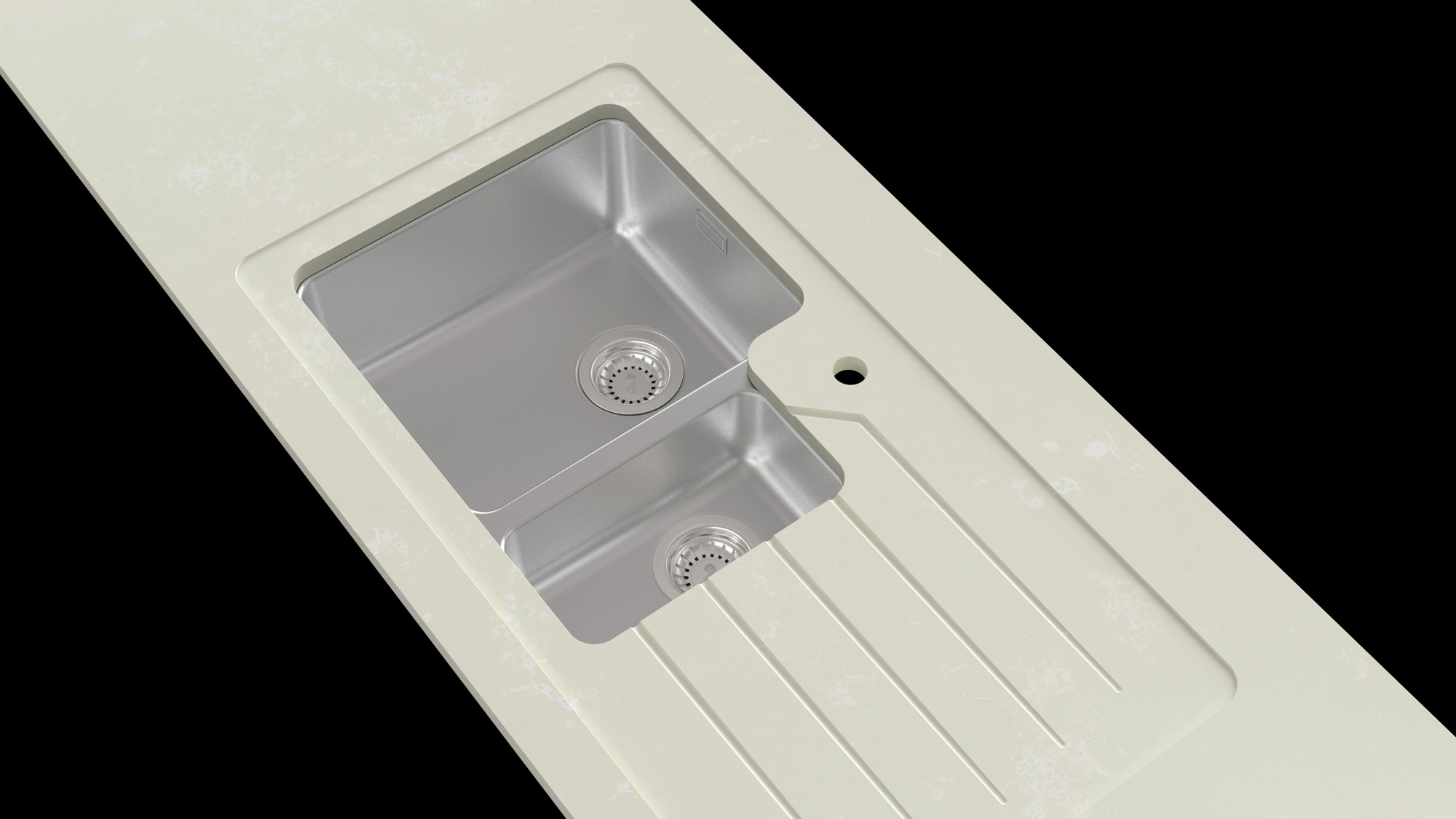

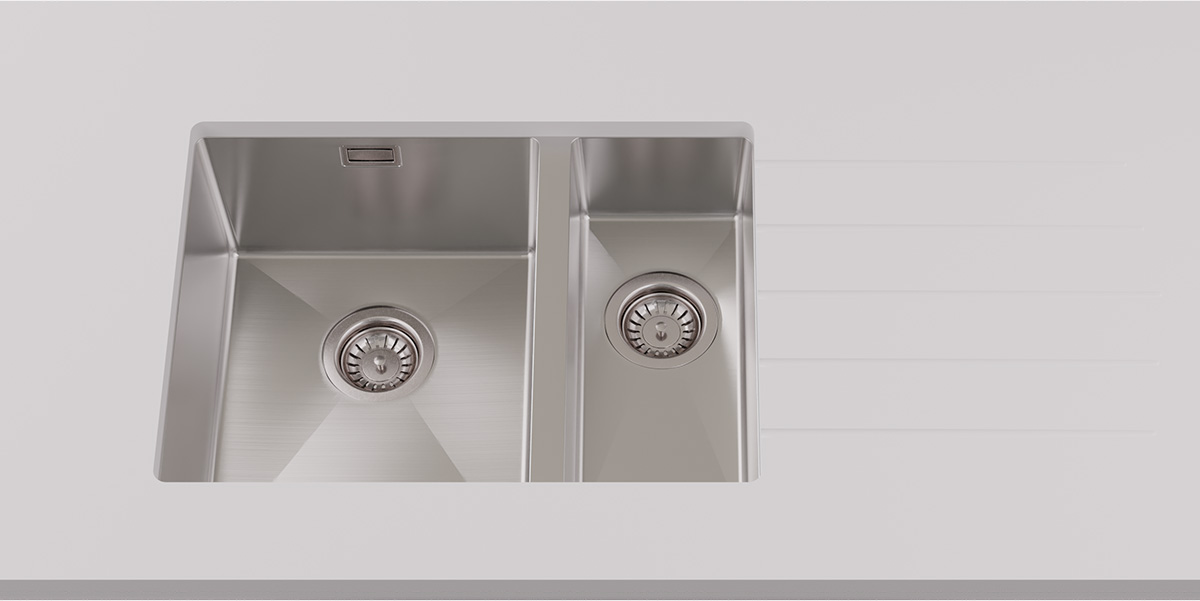

1.5 Designer bowl
a. 550mm
b. 400mm
c. 190mm
d. 180mm
e. 400mm
f. 125mm

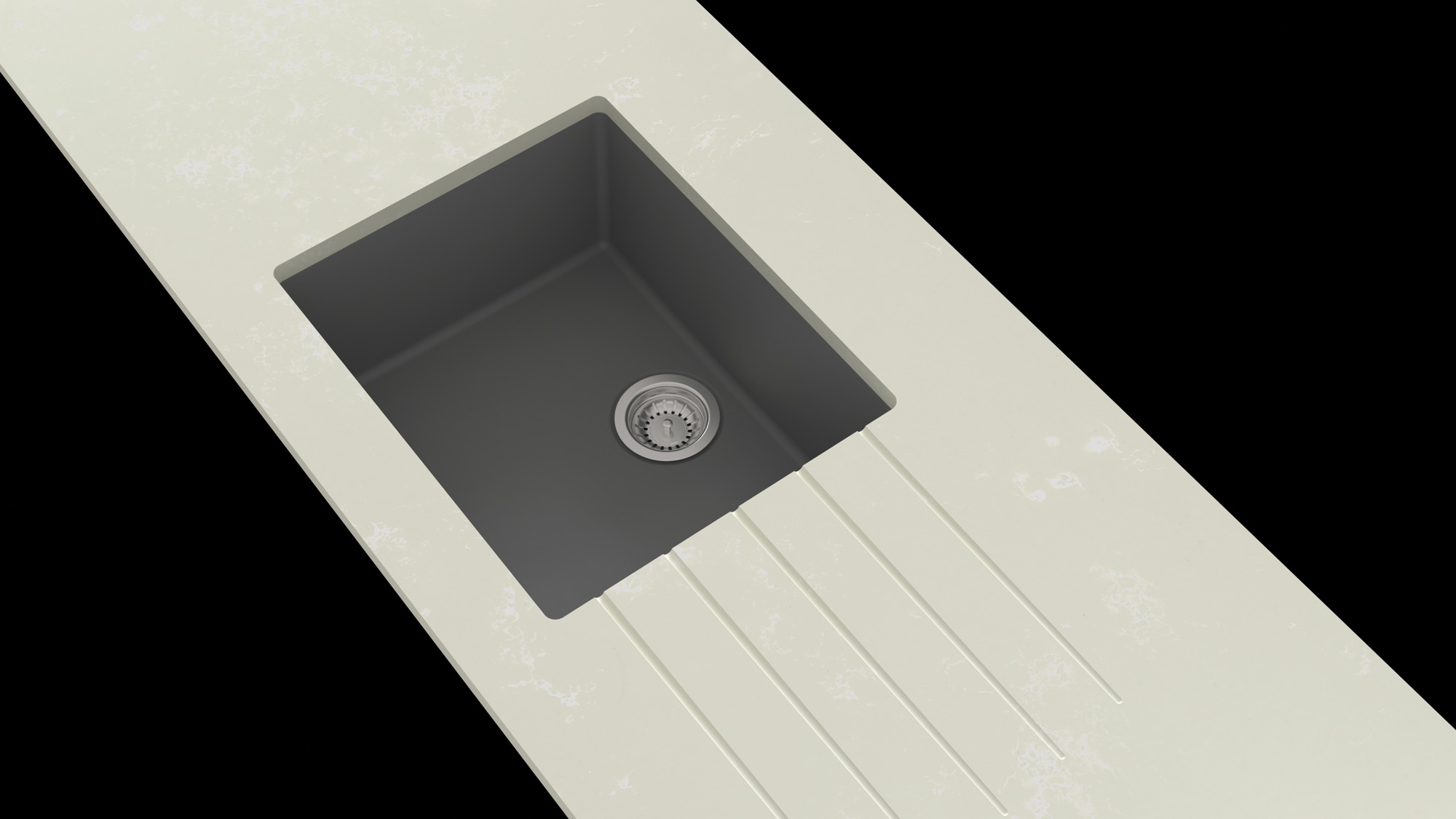

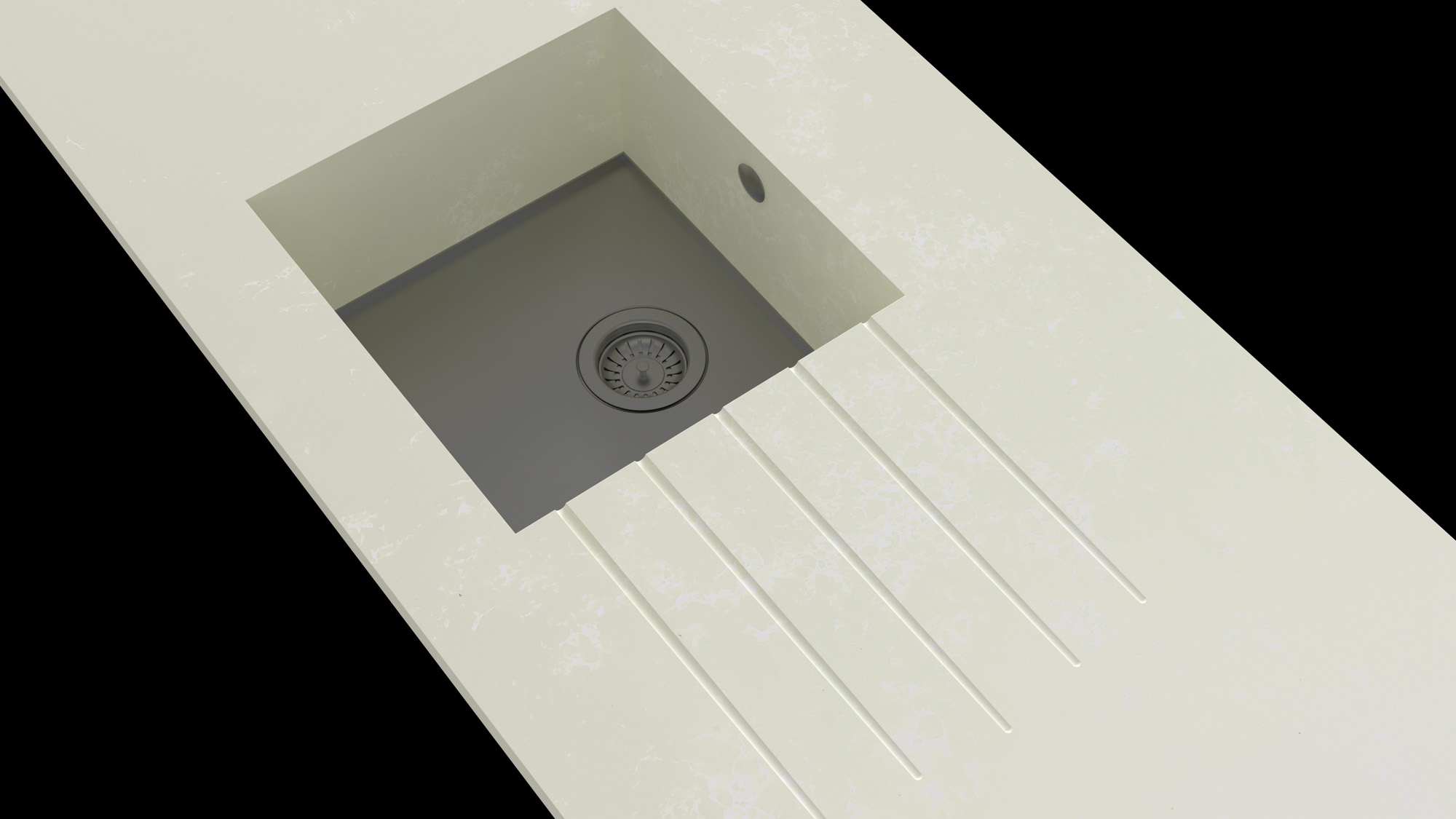

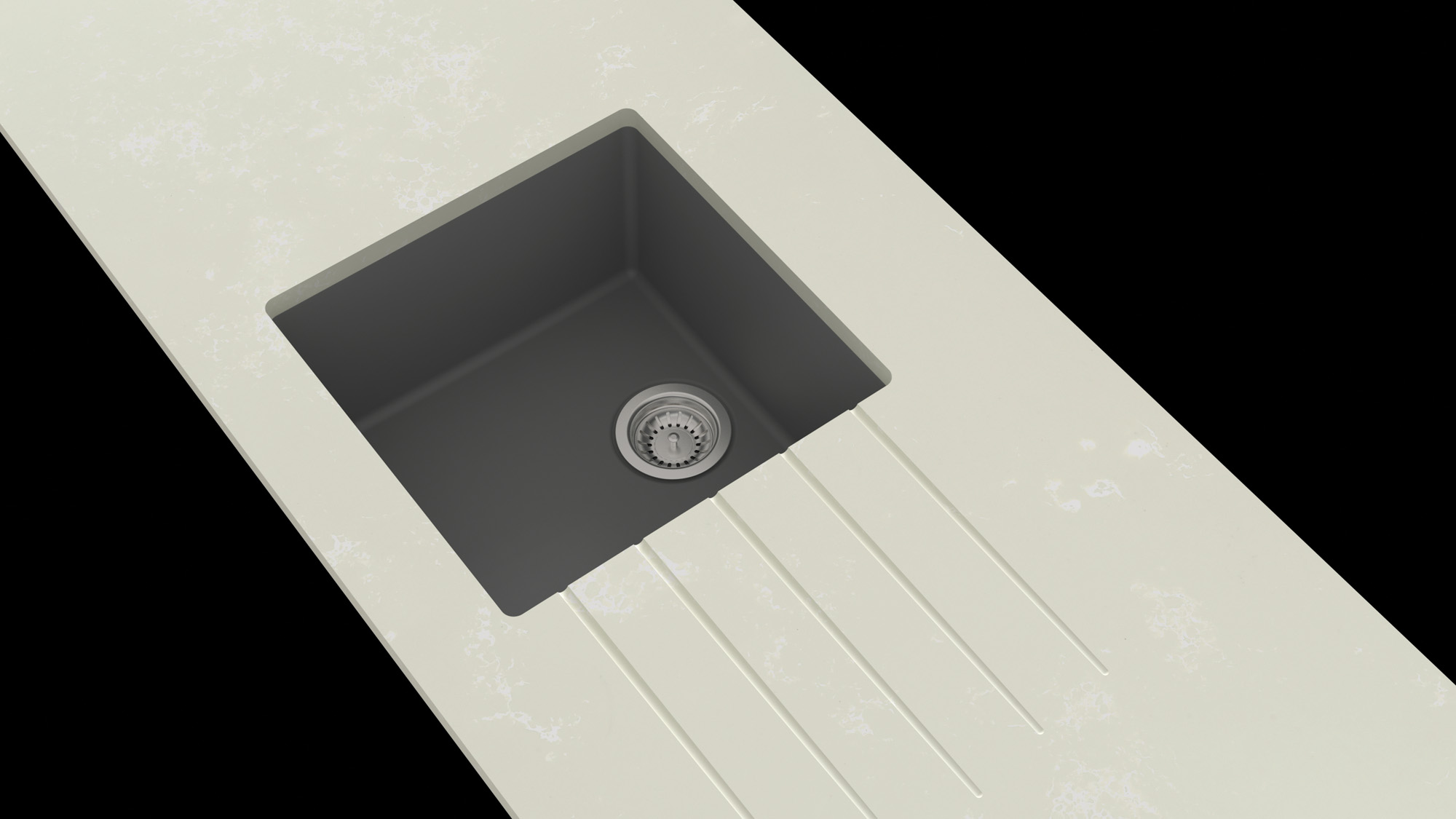

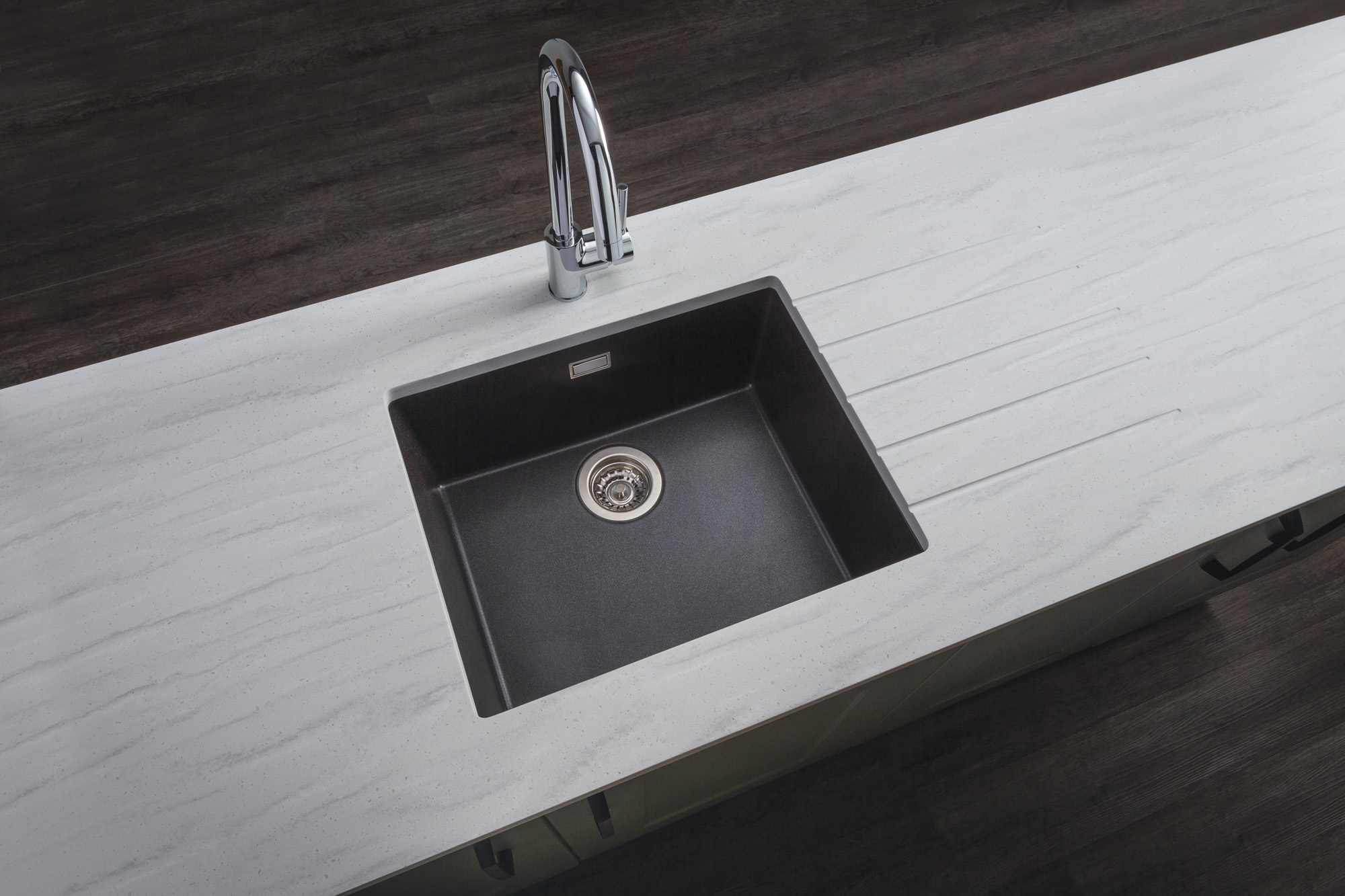

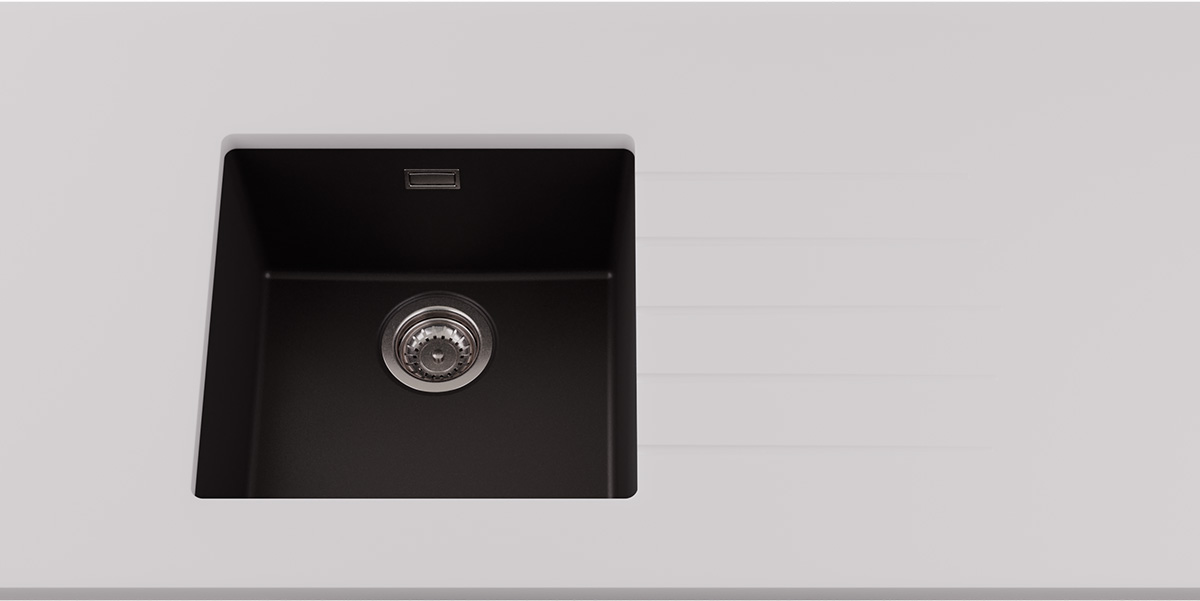

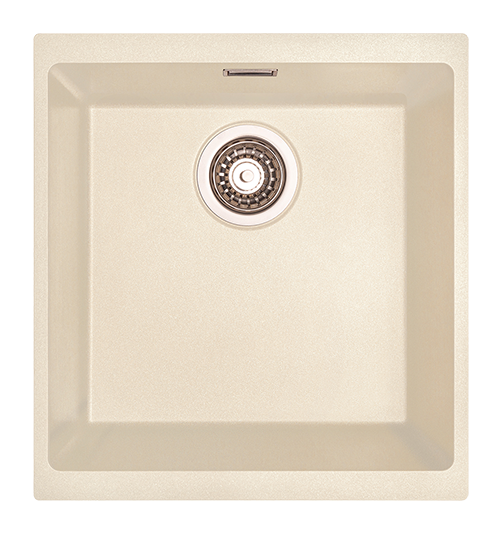

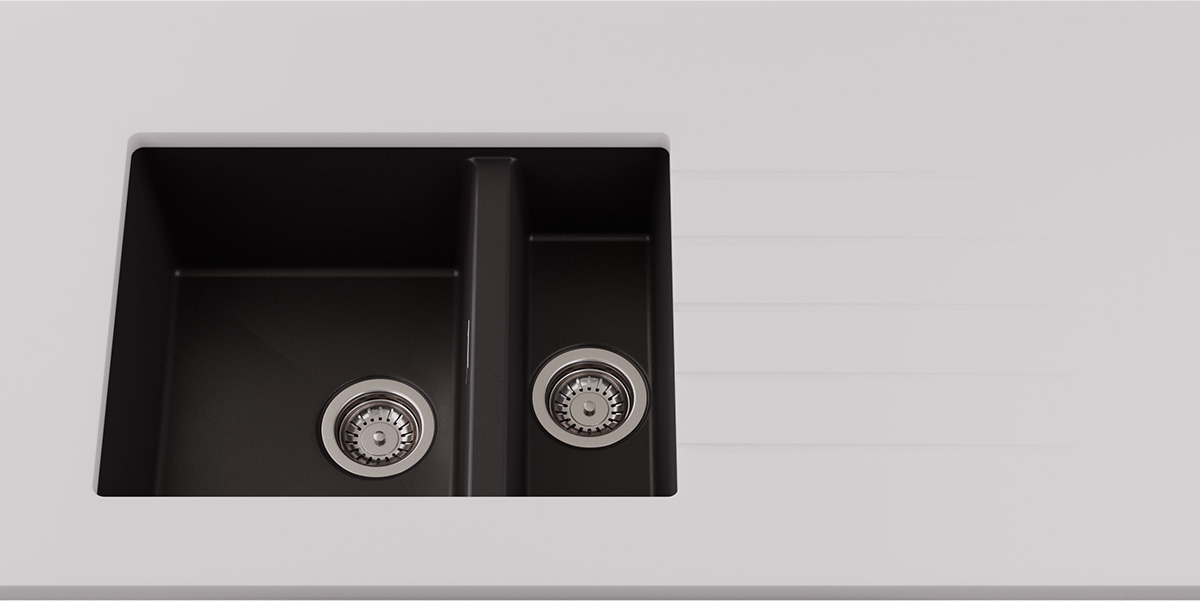

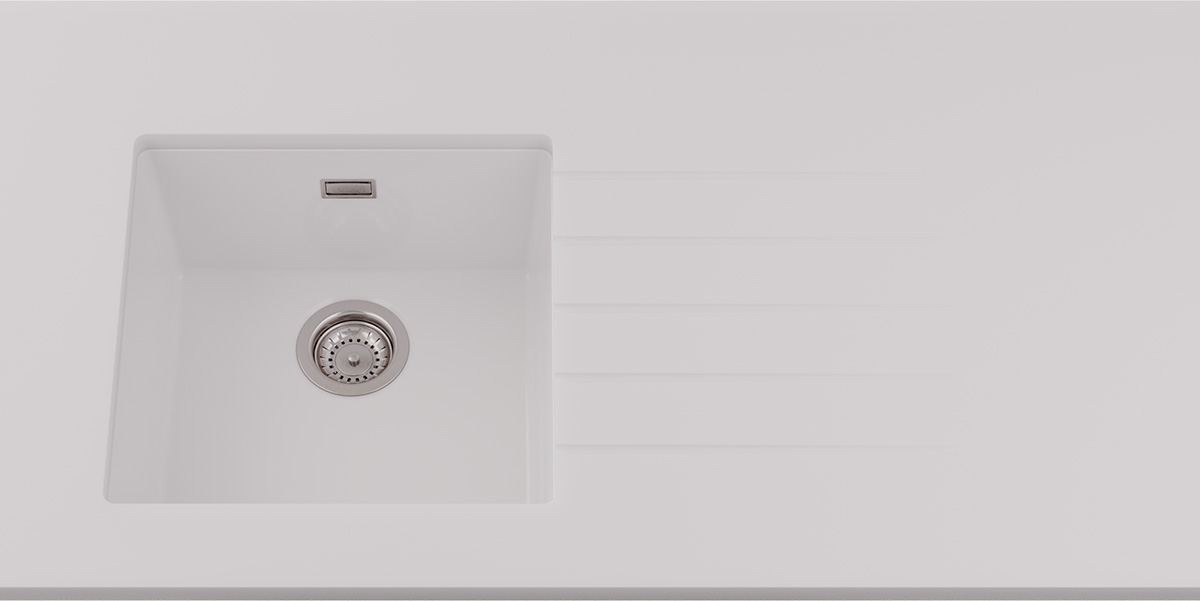

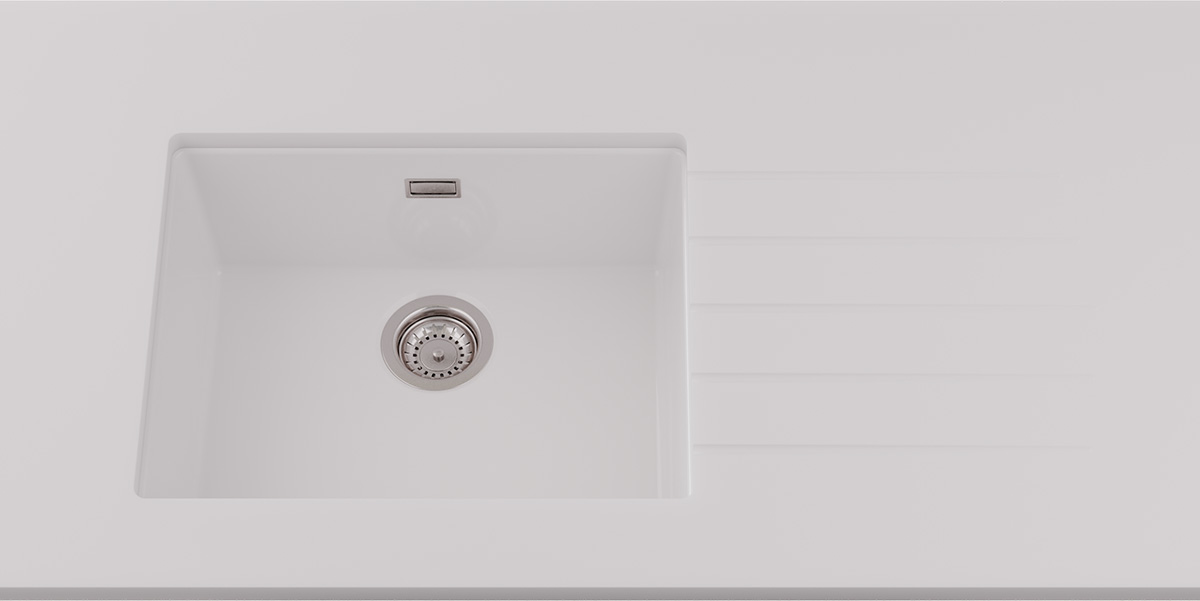

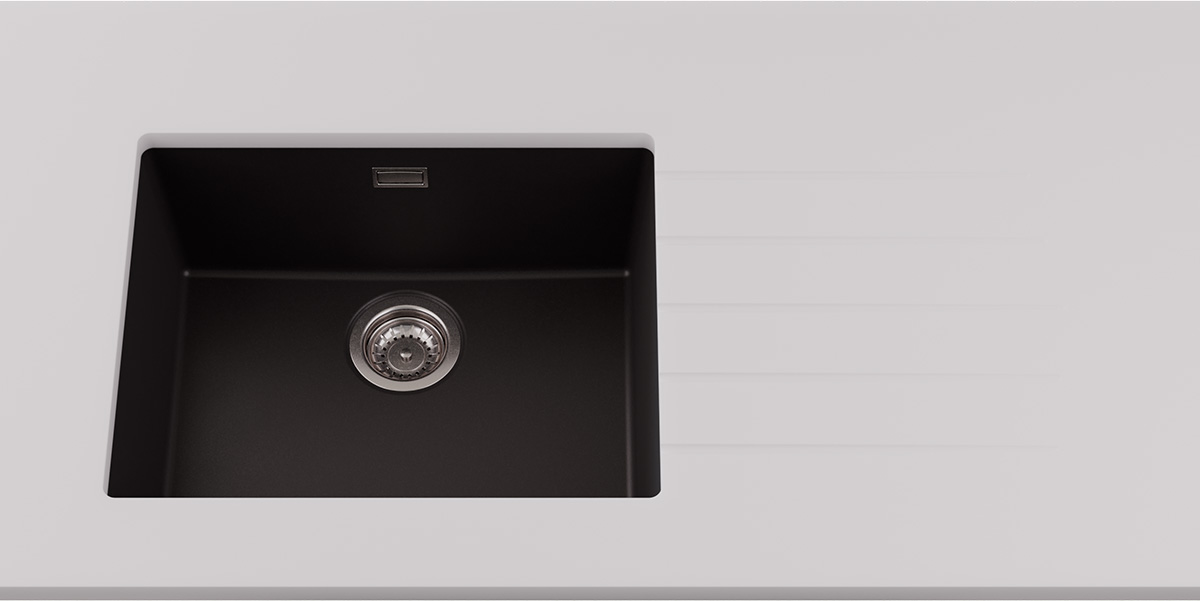

Granite undermount sinks
Our granite undermount selection offers great durability and a simple uncluttered design.
Add the choice of 4 colourways and the options are plentiful.
- 12mm radius corners
- Plumbing kit supplied
- Boiling tap compatible
- Fitting clips supplied
KEY:
This sink is suitable for use with a boiling water tap
Do not install a boiling water tap with this sink
|
Will fit into 500mm base cabinet
Will fit into 600mm base cabinet
|
Will fit into base cabinet openings over 650mm
All bowls are SS304 (18/10) grade steel

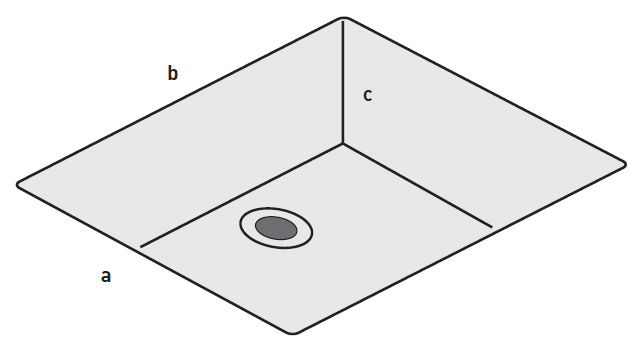

a. 400mm
b. 400mm
c. 200mm
a. 500mm
b. 400mm
c. 200mm

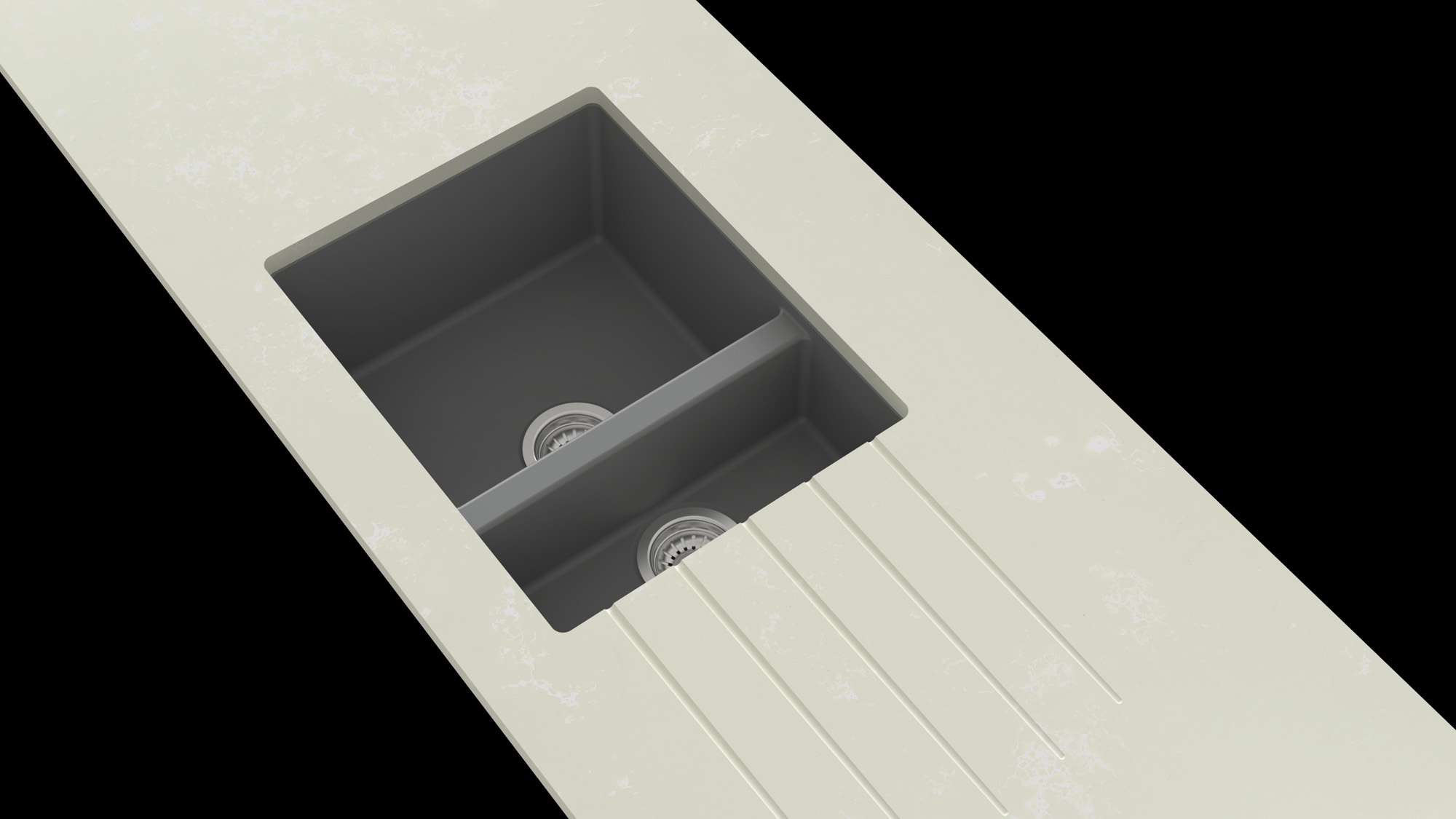

a. 335mm
b. 400mm
c. 200mm
d. 155mm
e. 400mm
f. 140mm

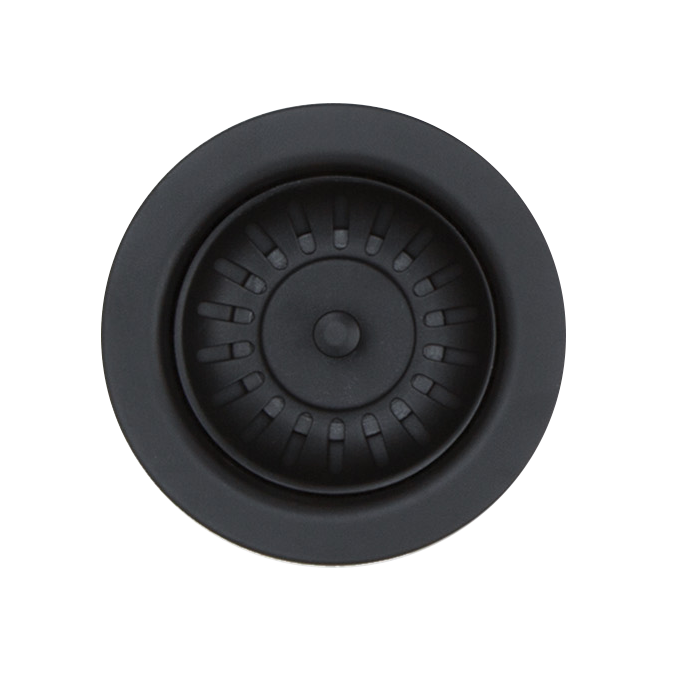

Available in the following colours
Black
White
Gunmetal
Graphite

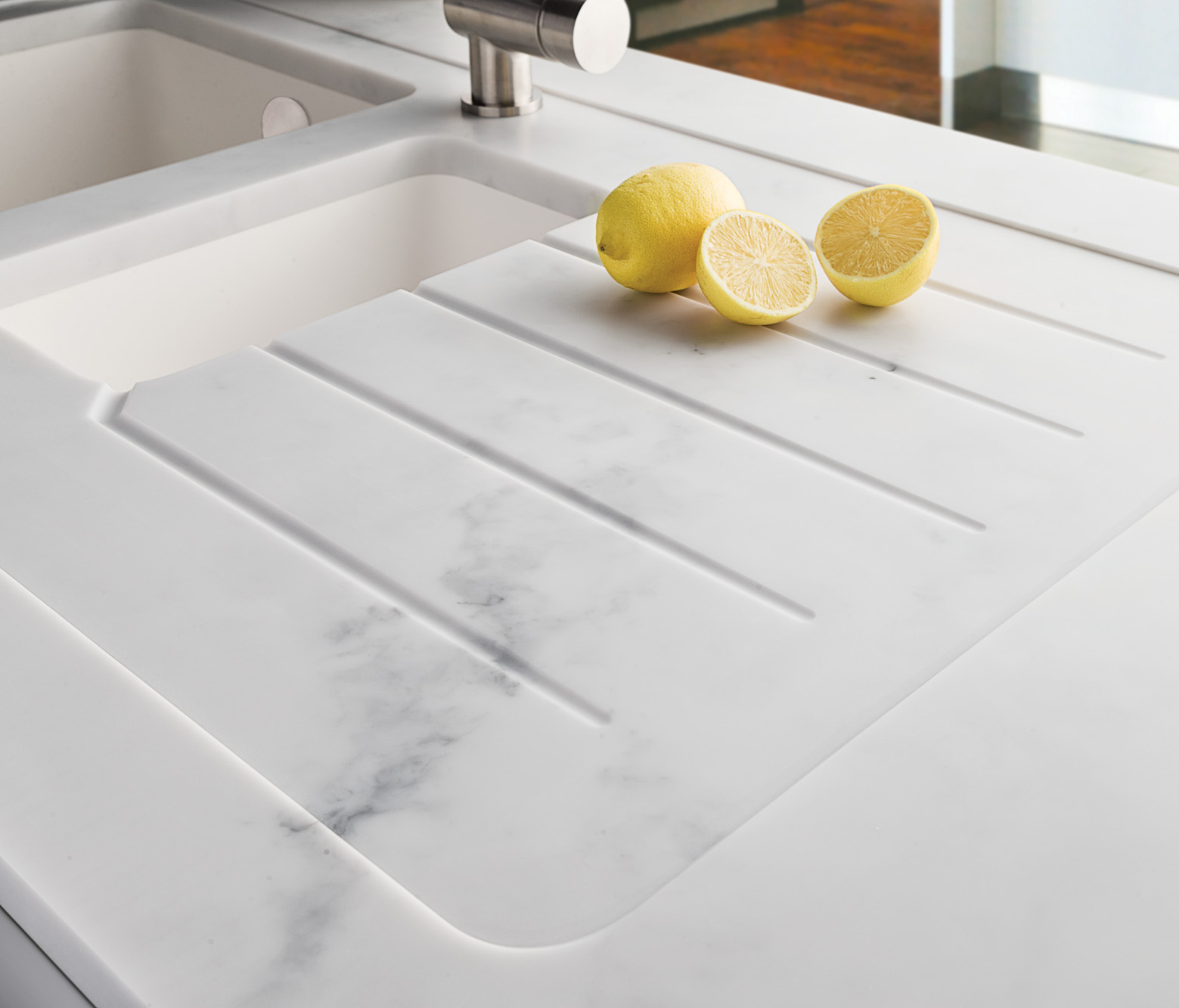

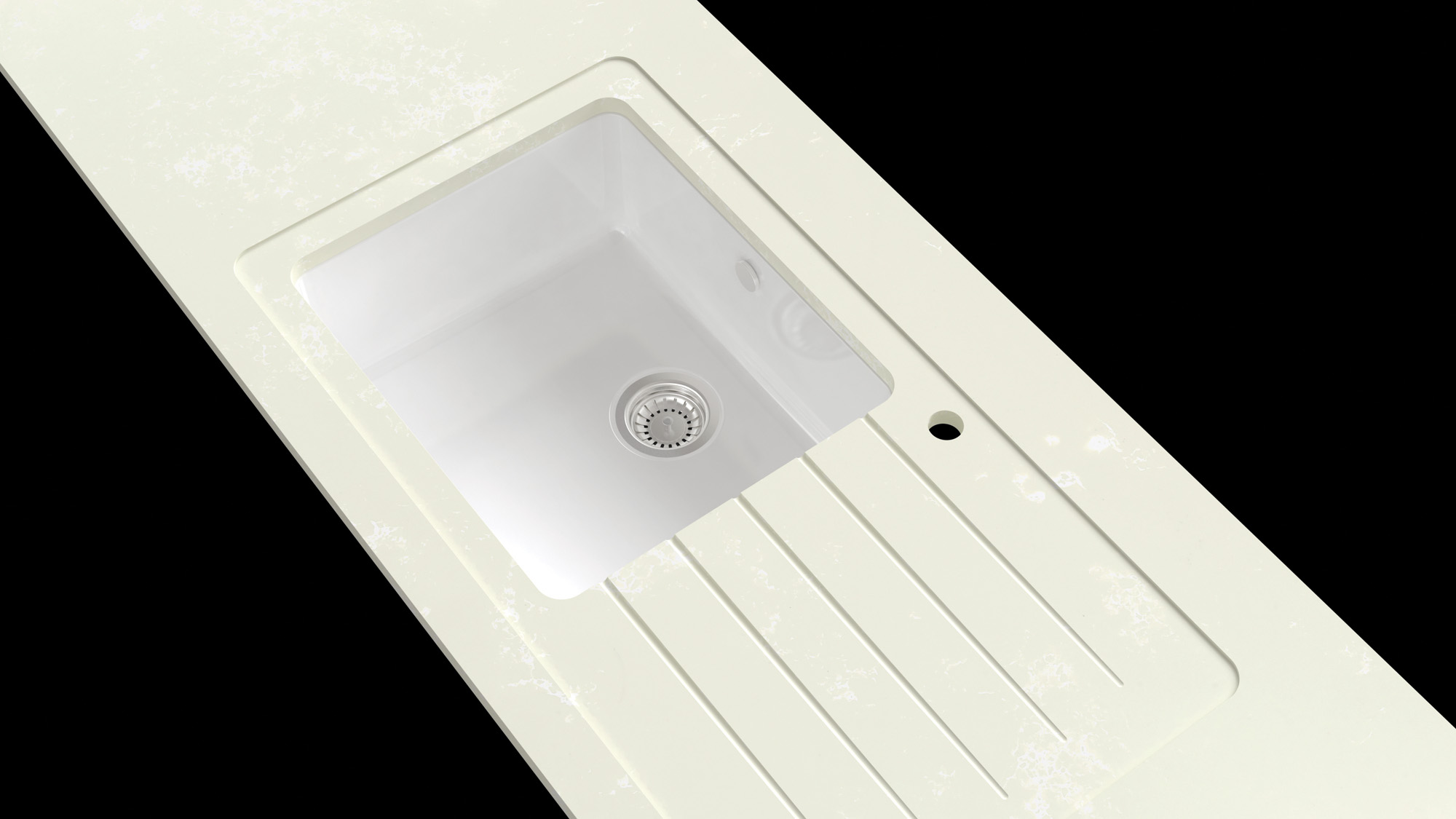

Acrylic 25mm undermount sinks
Our 25mm acrylic sink modules are supplied with a seamless, factory fitted, white sink. Each module has a recessed
drainer area and drainer grooves machined into the surface and then hand finished by our highly skilled fabricators.
- 25mm radius corners
- Plumbing kit supplied
- NOT compatible with boiling water taps
- Fully fabricated at our factory
KEY:
This sink is suitable for use with a boiling water tap
Do not install a boiling water tap with this sink
|
Will fit into 500mm base cabinet
Will fit into 600mm base cabinet
|
Will fit into base cabinet openings over 650mm
All bowls are SS304 (18/10) grade steel

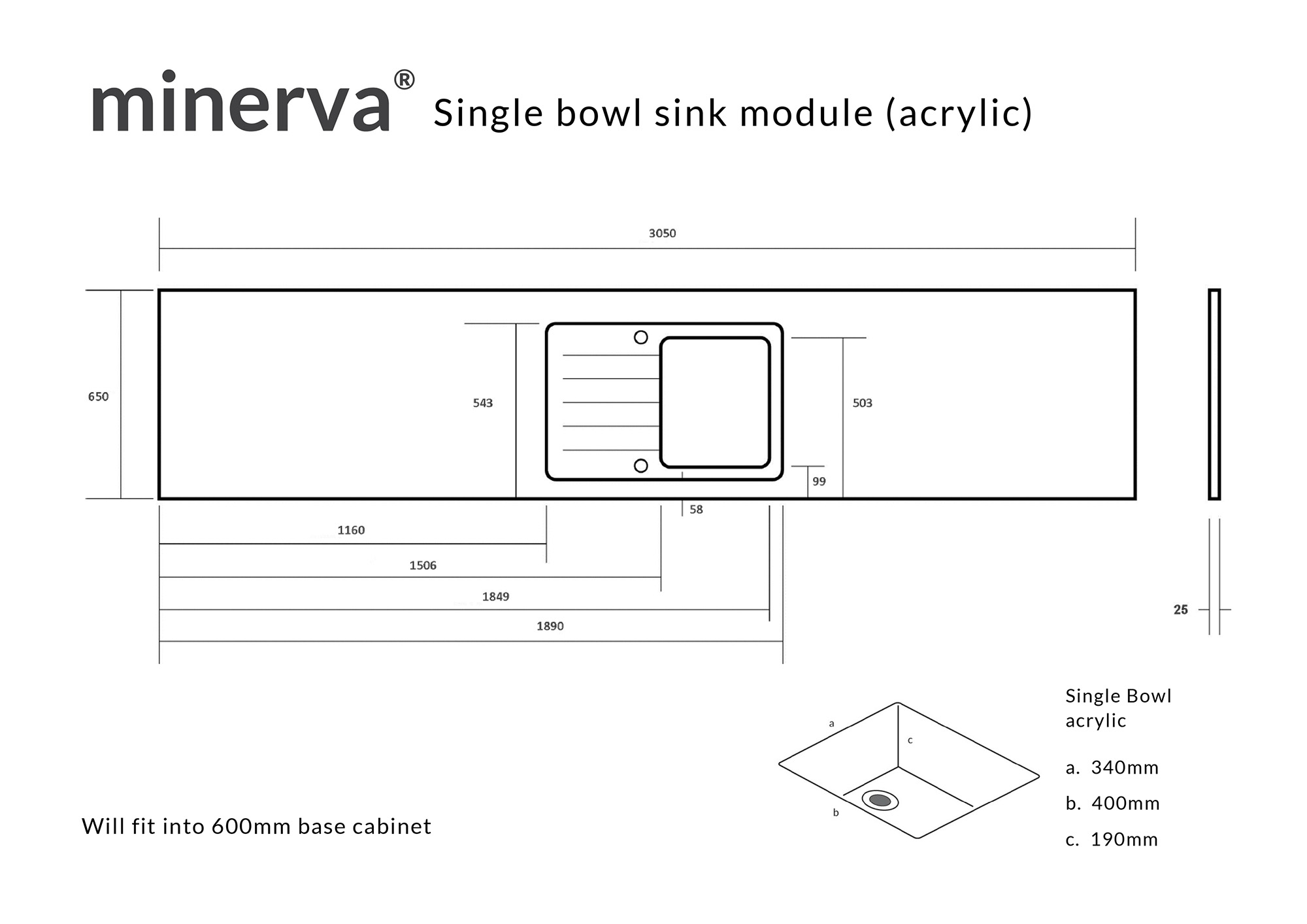

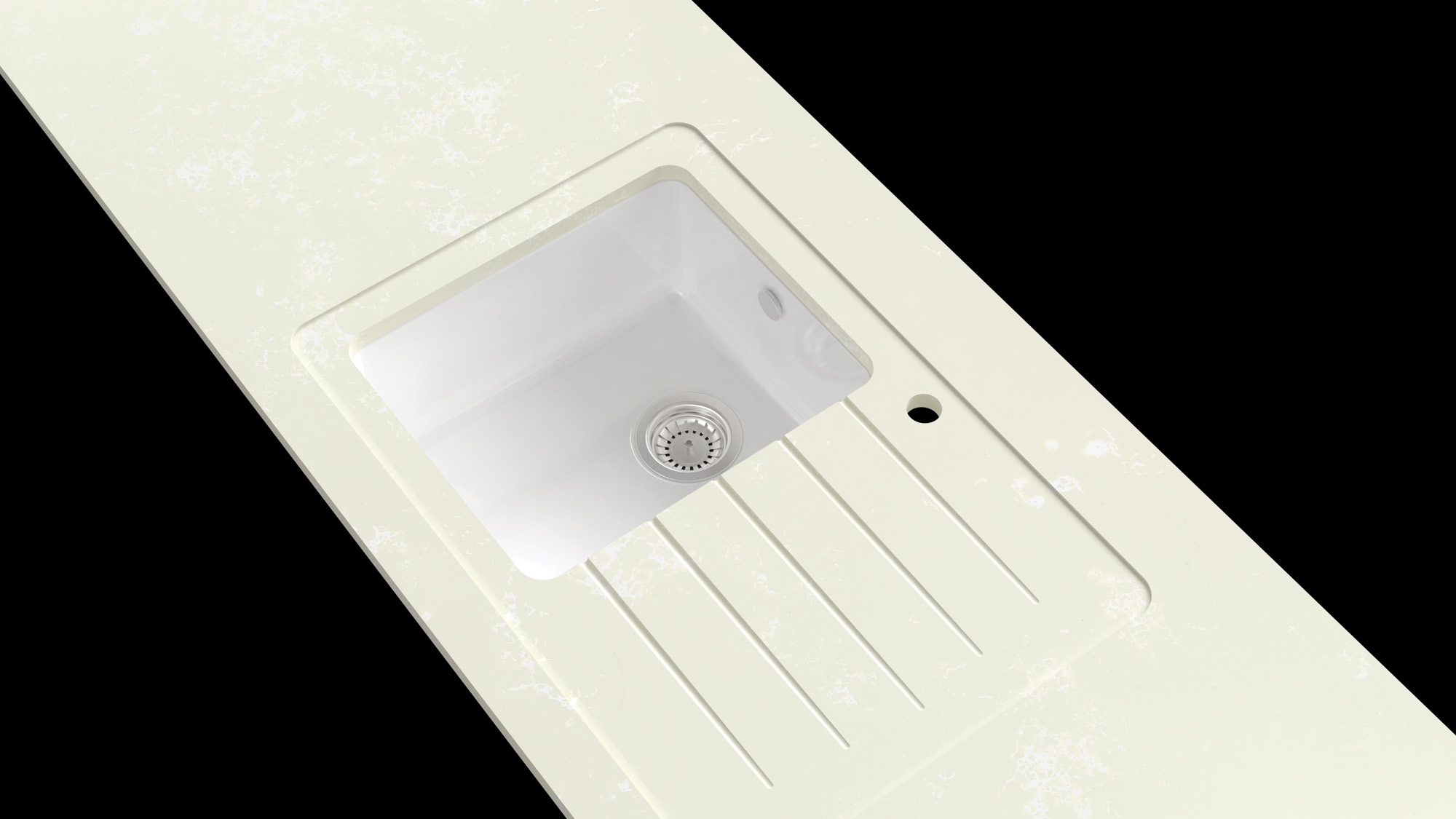

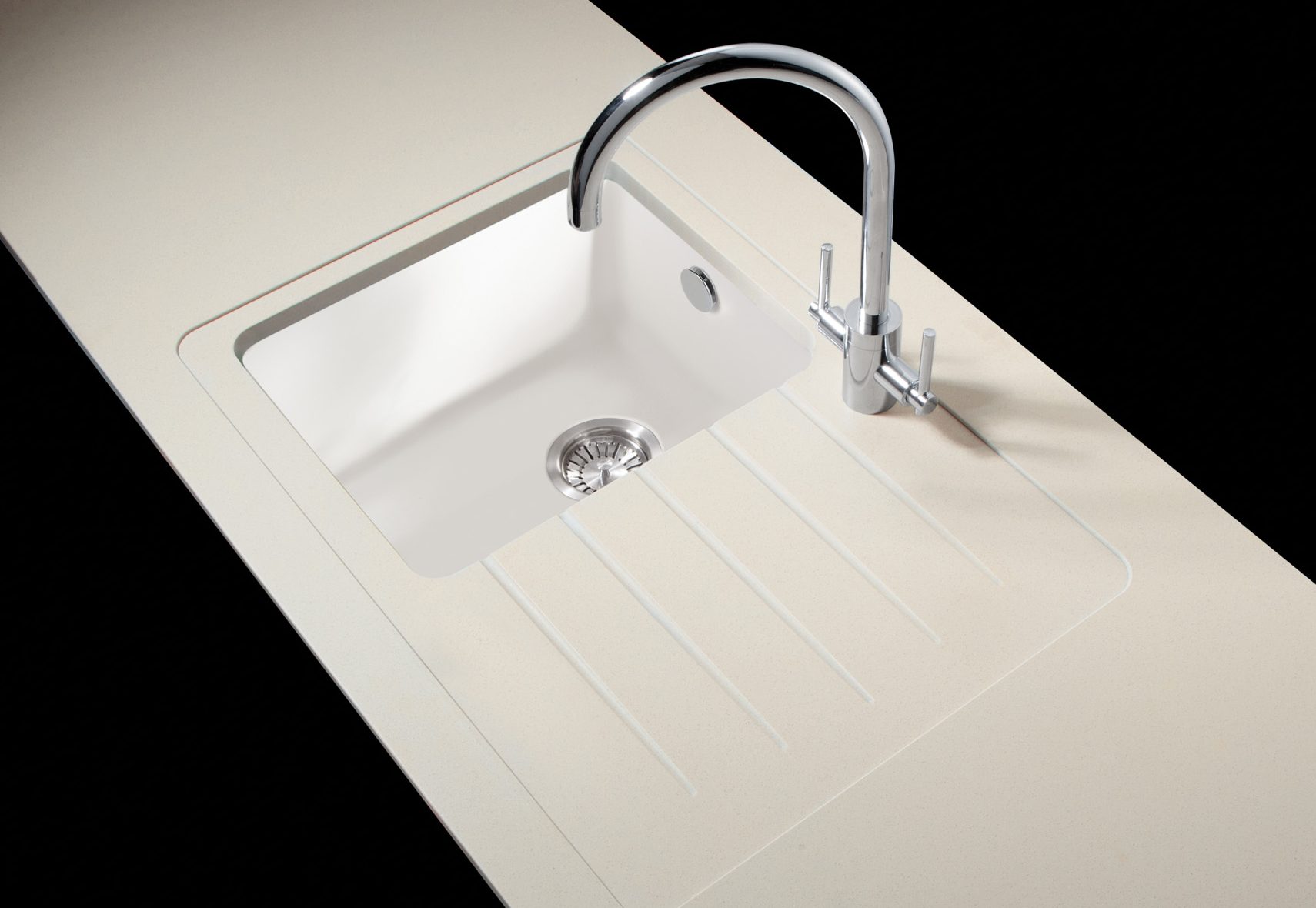

single bowl acrylic
minerva® single bowl acrylic… 600mm deep with recessed drainer area.
Pre-drilled for tap. Includes factory fitted single bowl acrylic sink and basket strainer.
a. 340mm
b. 400mm
c. 190mm

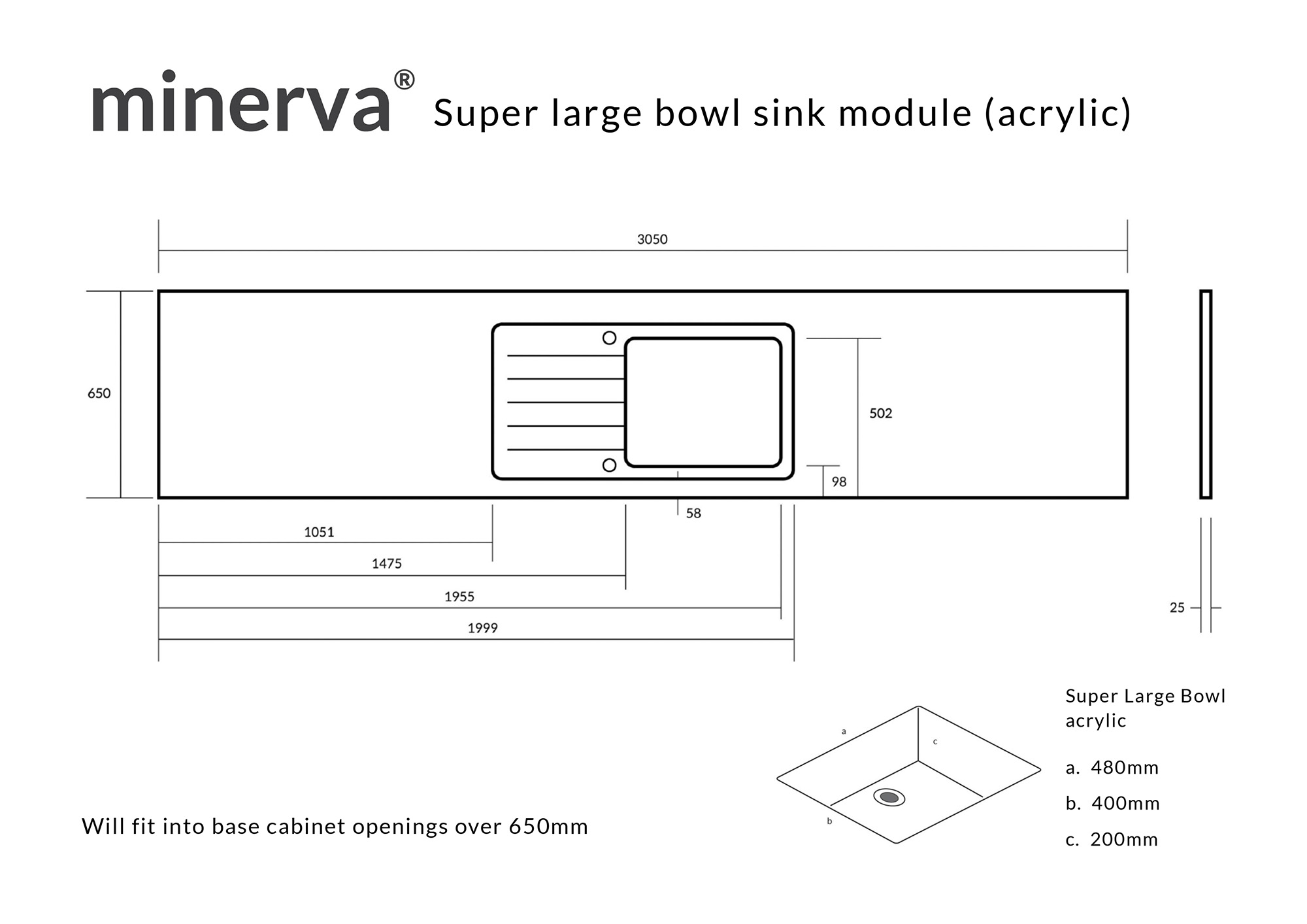

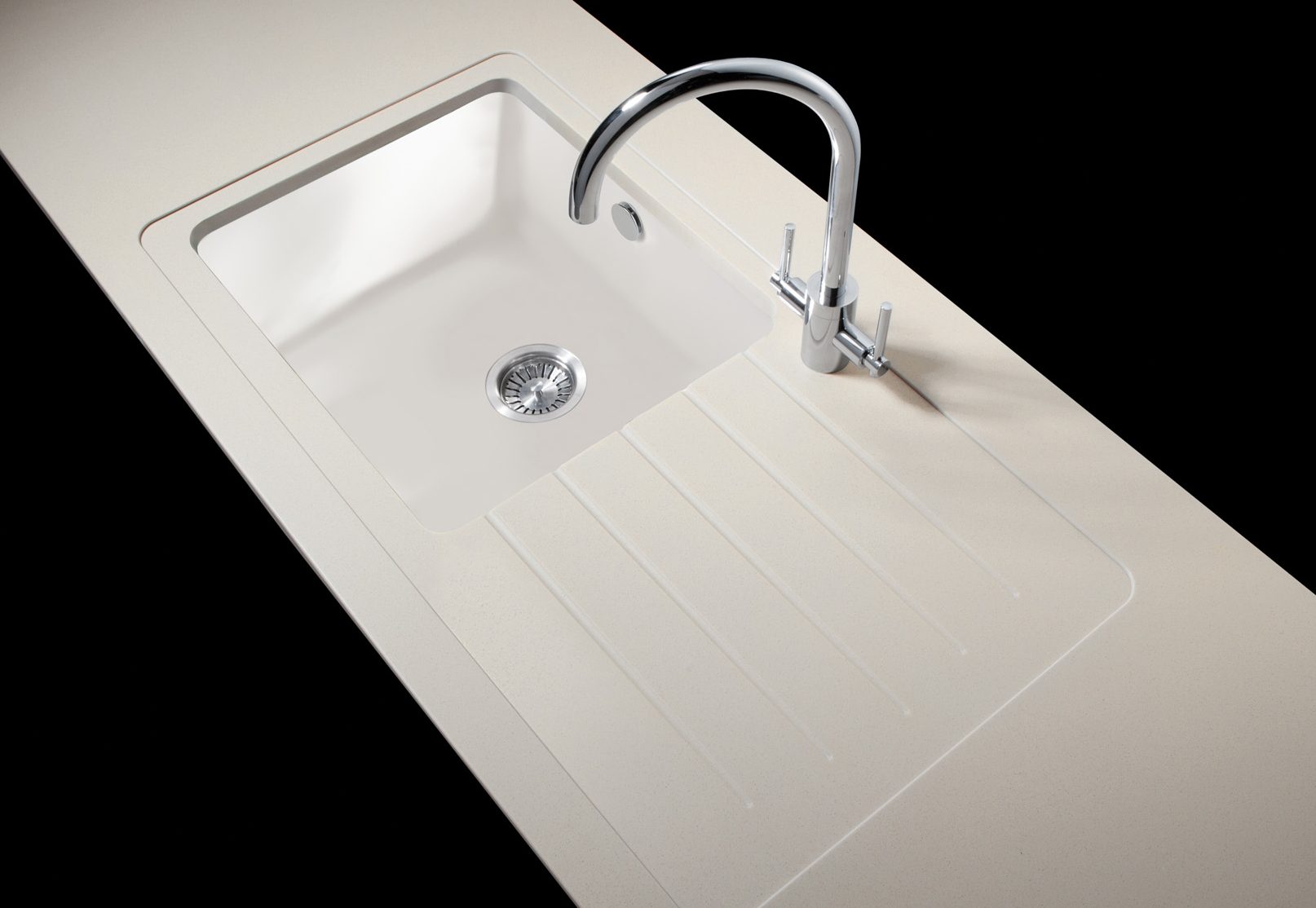

super large bowl acrylic
minerva® super large bowl with recessed drainer area.
Pre-drilled for tap. Includes factory-fitted single bowl acrylic sink and basket strainer.
a. 480mm
b. 400mm
c. 200mm

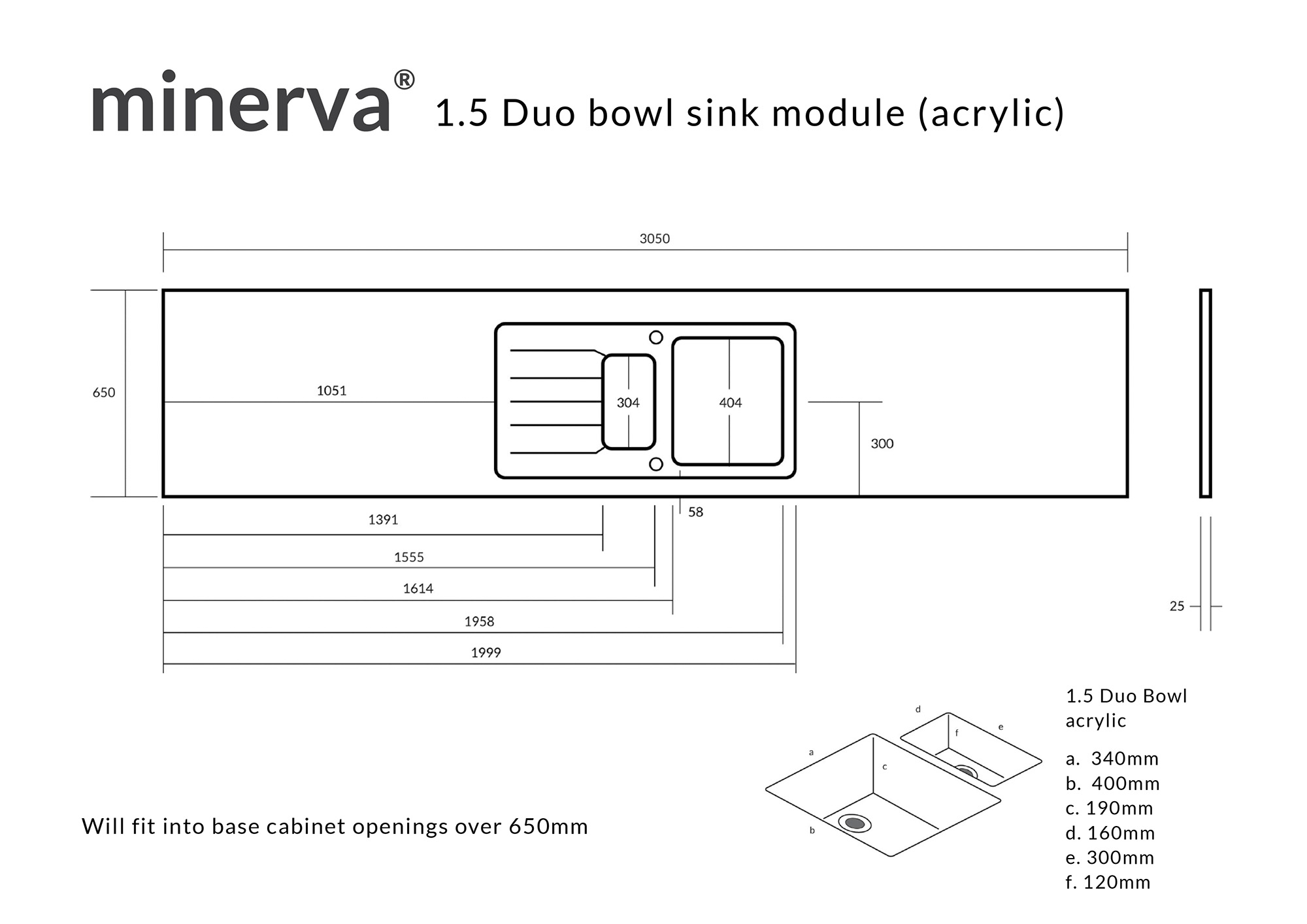

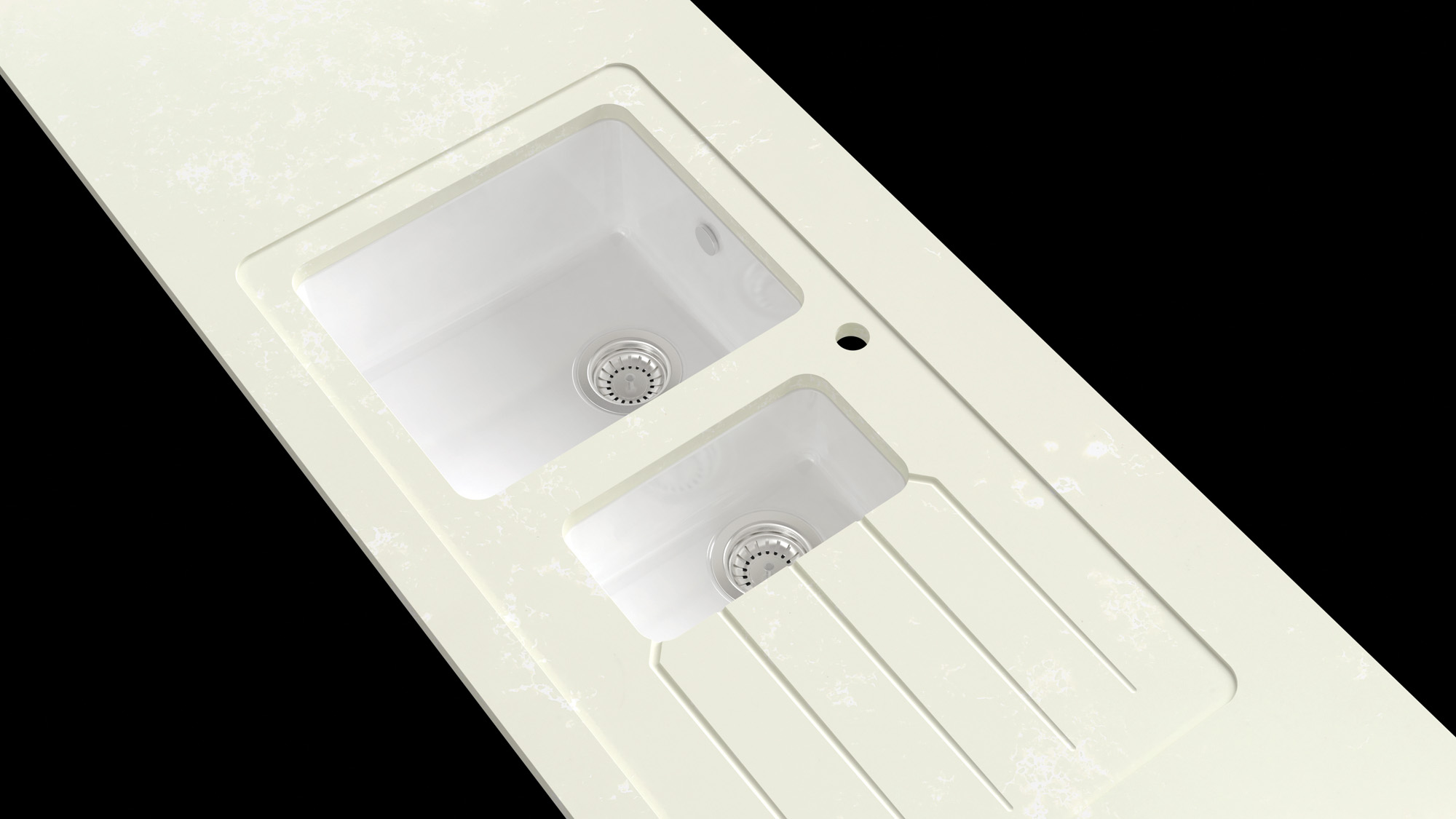

1.5 duo bowl
minerva® 1.5 duo bowl acrylic with recessed drainer area.
Pre-drilled for tap. Includes factory fitted 1.5 bowl acrylic sink and basket strainers.
a. 340mm
b. 400mm
c. 190mm
d. 160mm
e. 300mm
f. 120mm

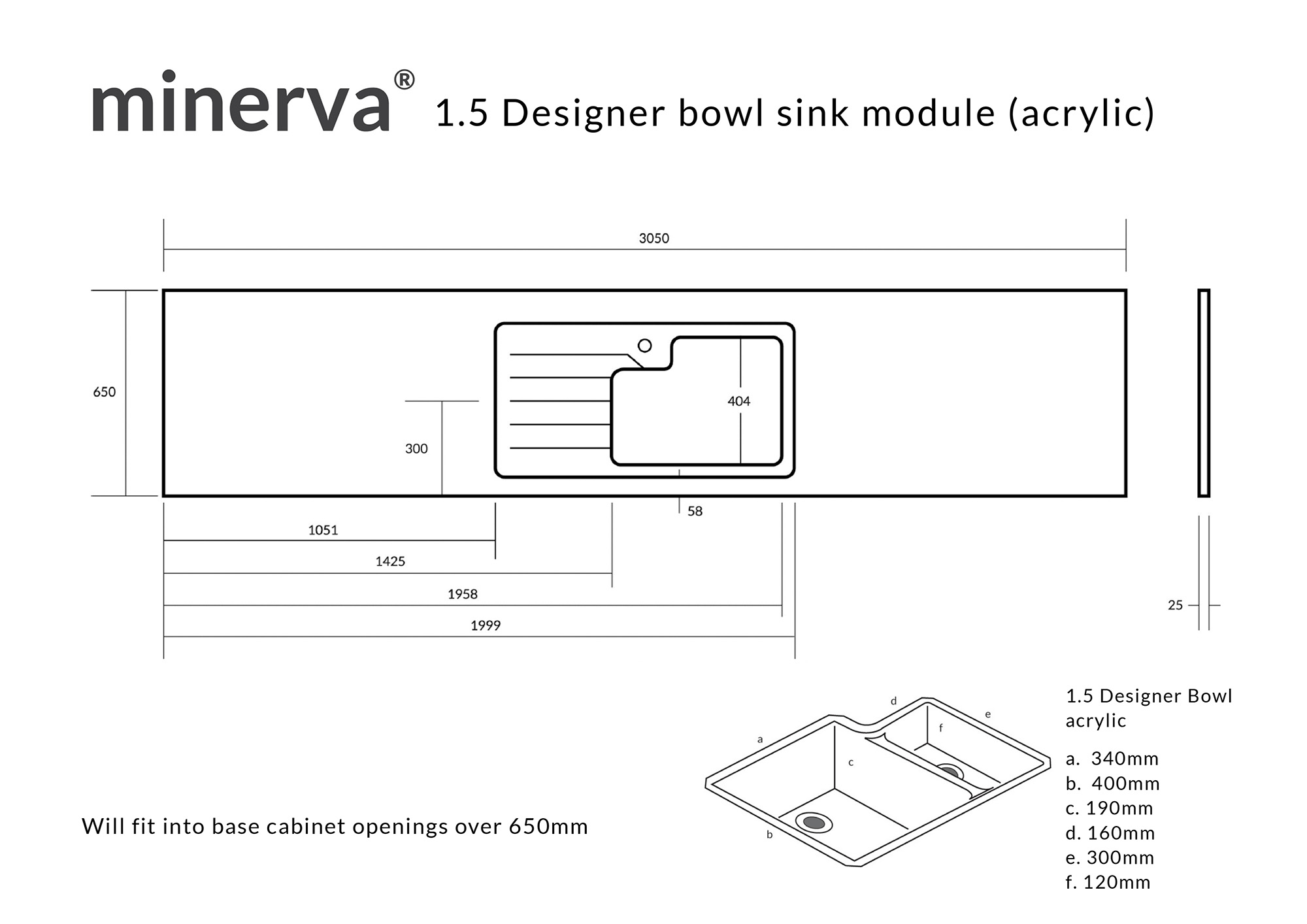

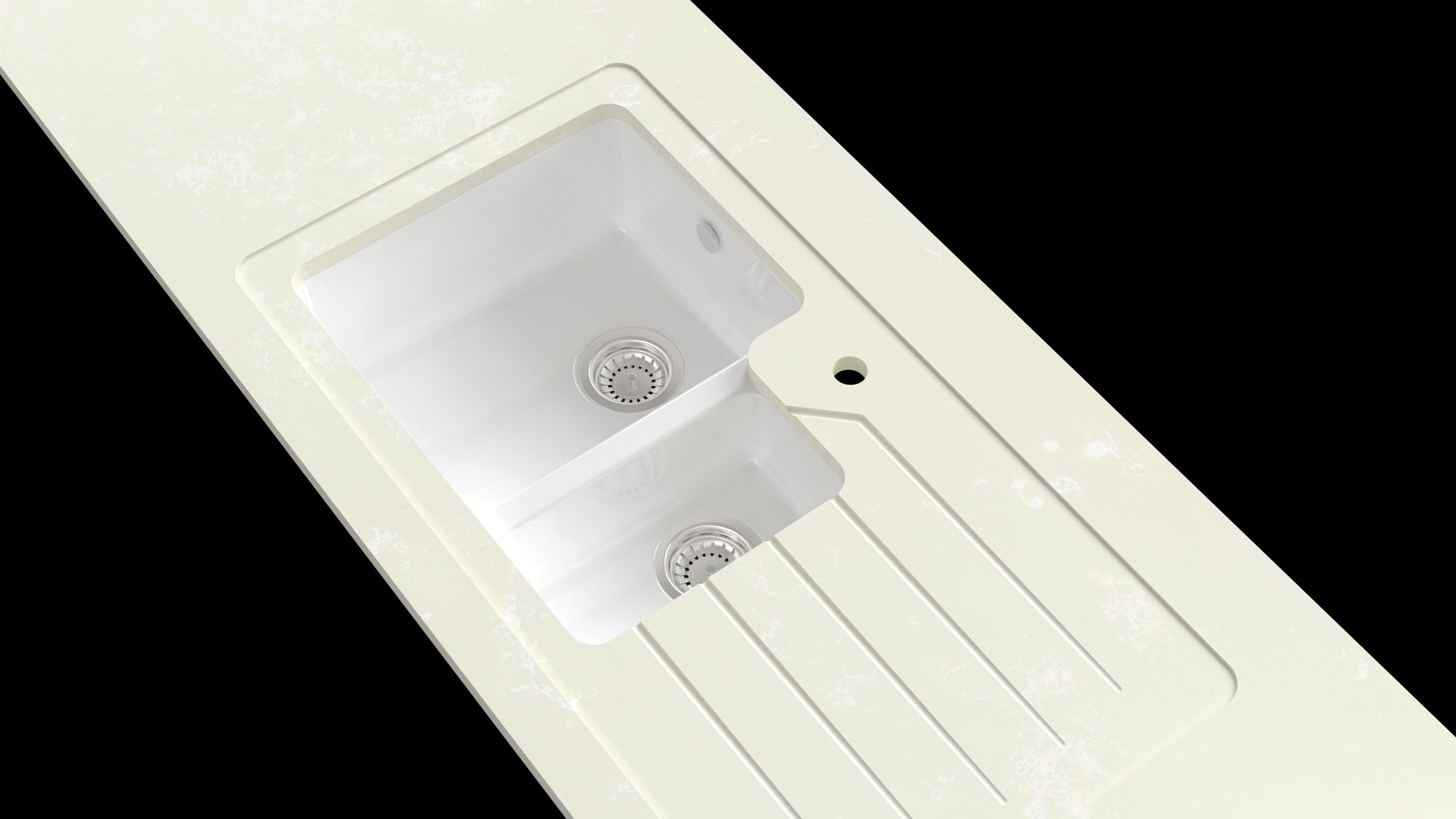

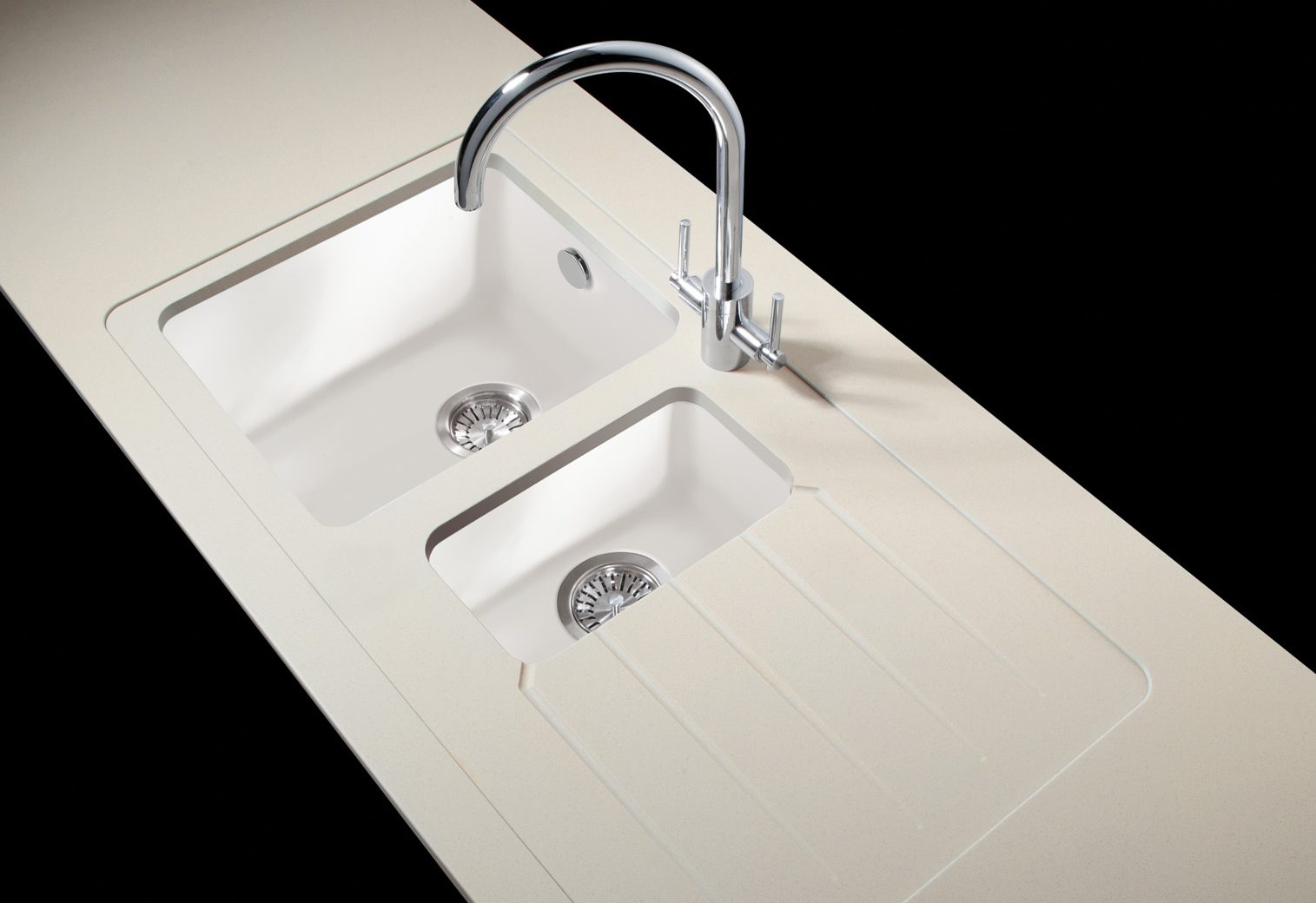

1.5 designer bowl acrylic
minerva® 1.5 designer bowl acrylic with recessed drainer area.
Pre-drilled for tap. Includes factory-fitted combined 1.5 bowl acrylic sink and basket strainers.
a. 340mm
b. 400mm
c. 190mm
d. 160mm
e. 300mm
f. 120mm

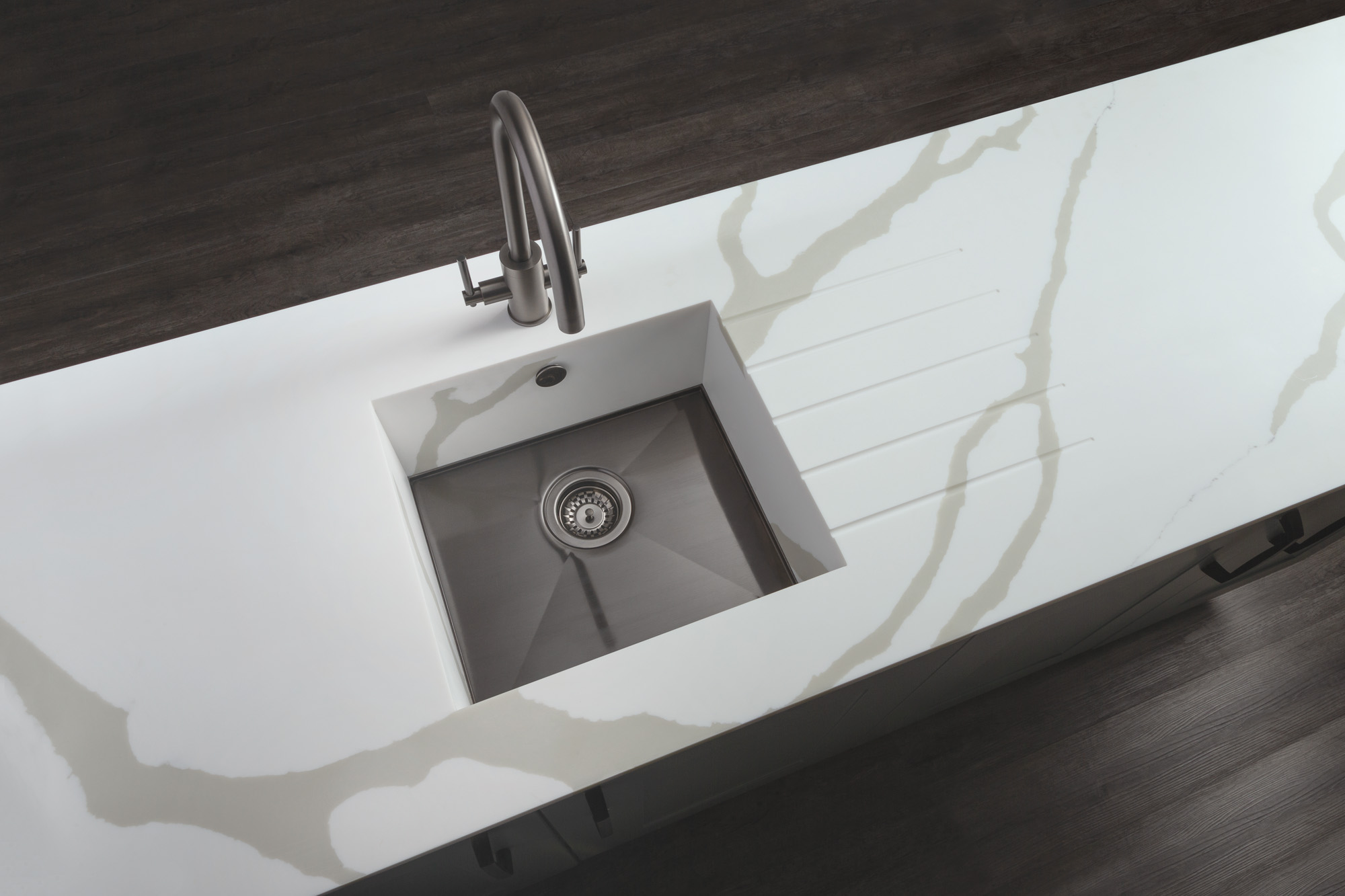

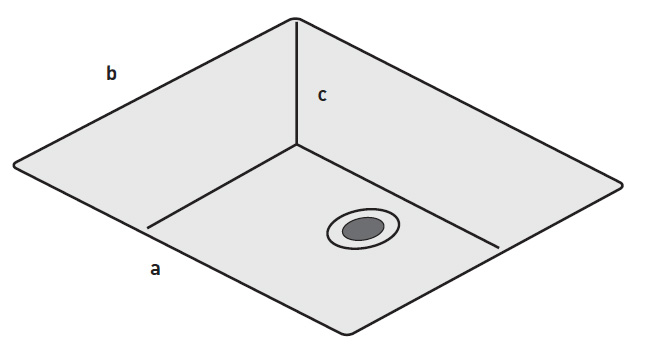

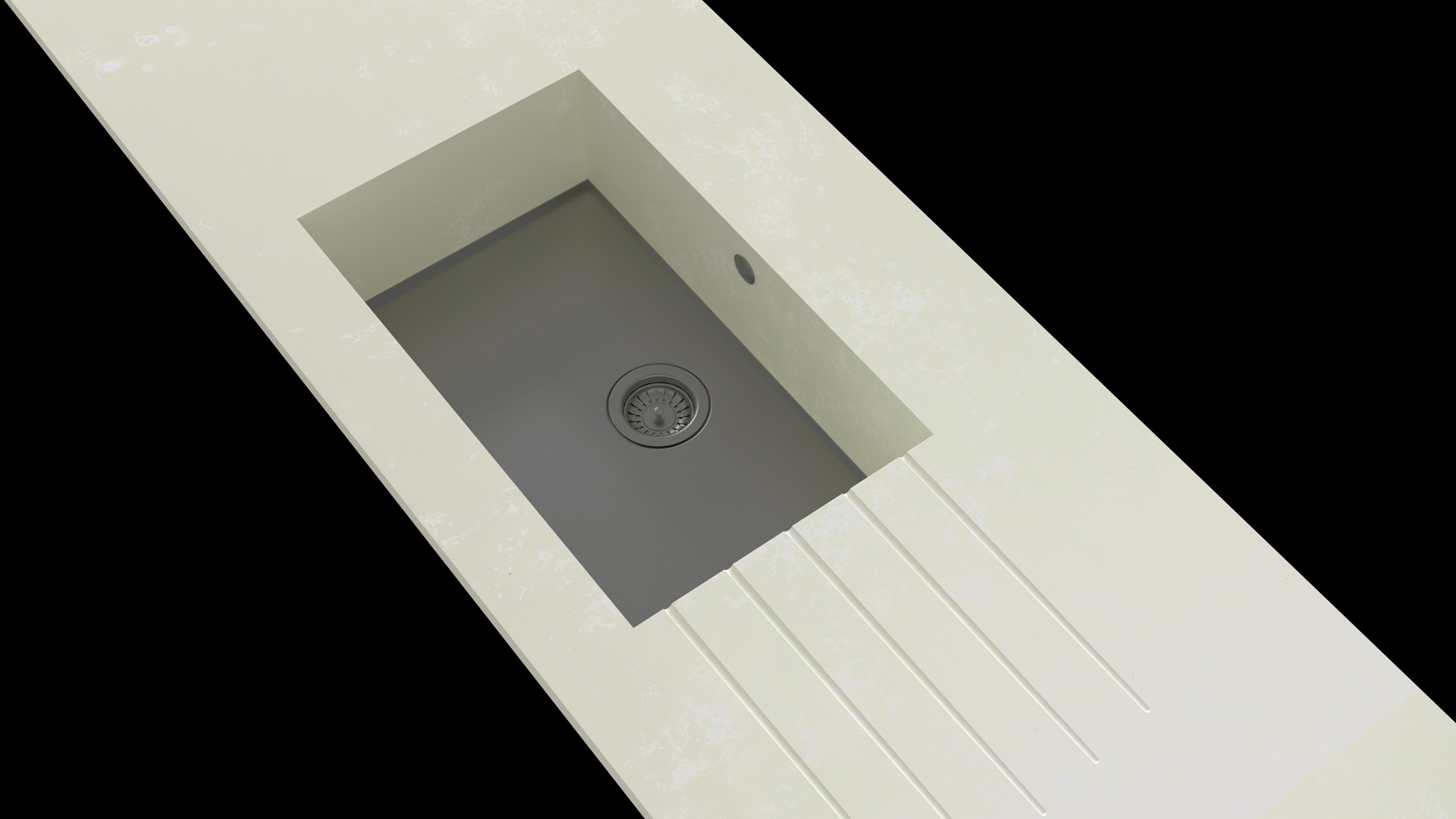

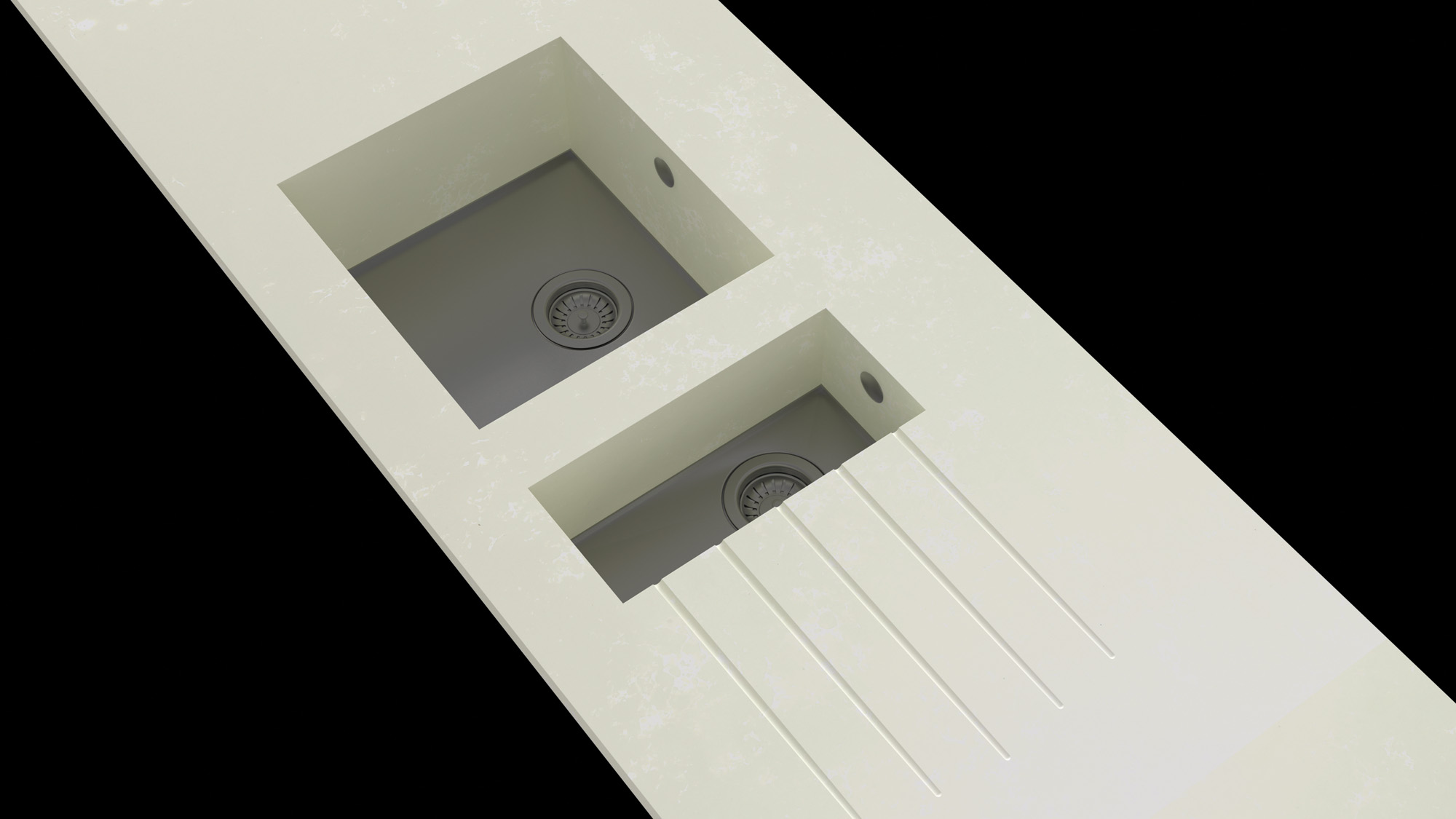

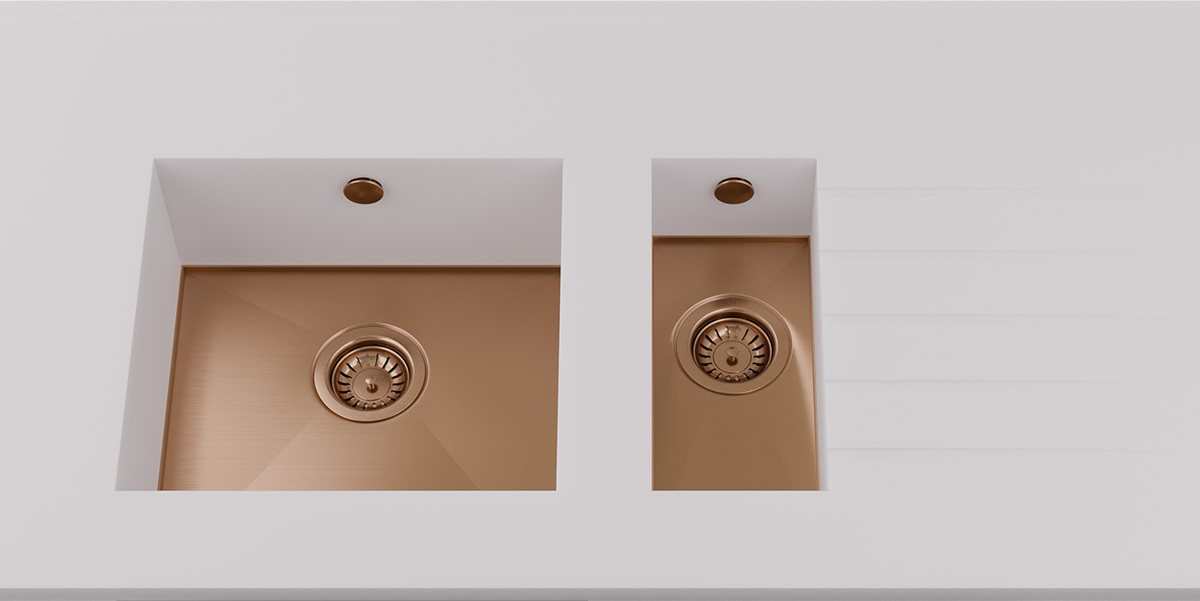

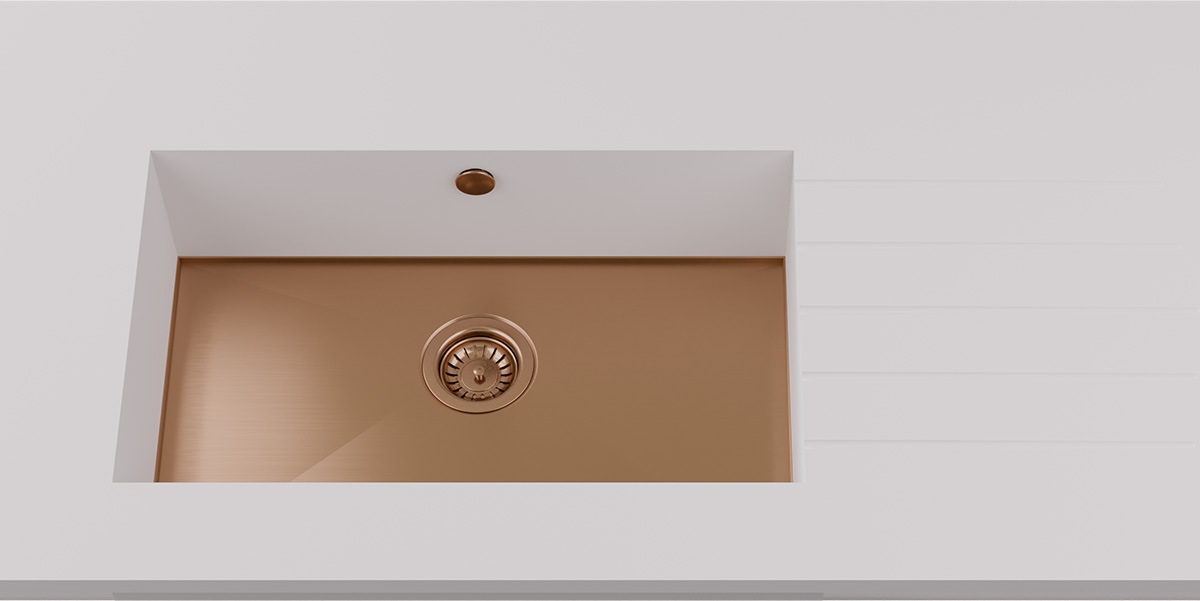

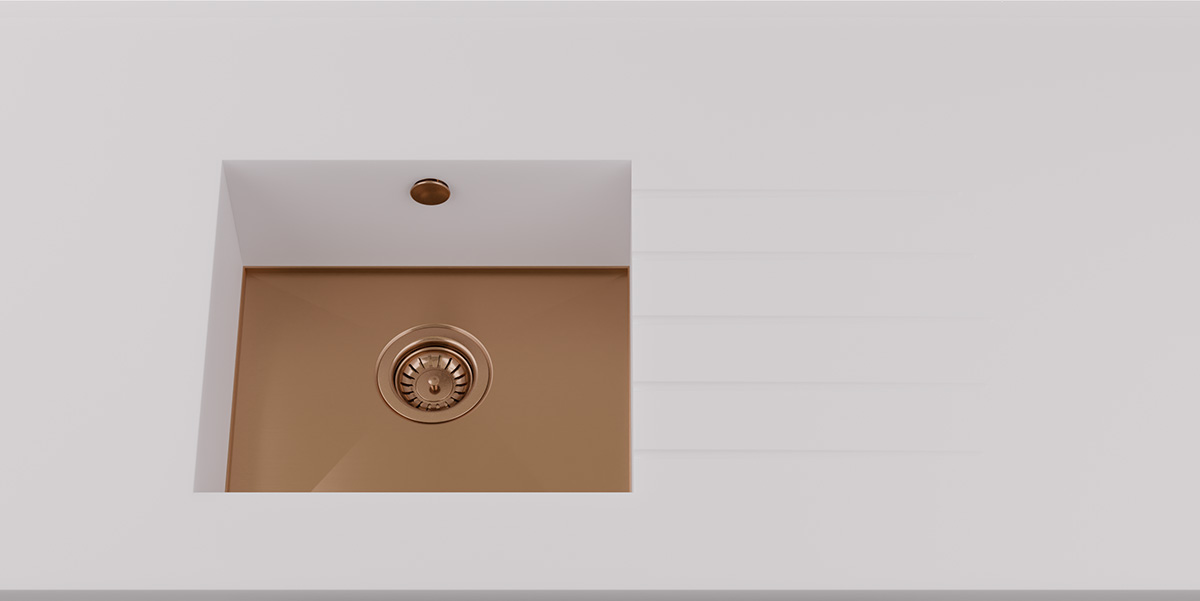

Integrated sinks
The ultimate sink module is here!
For the ultimate in luxury our integrated sink has sides formed from minerva surface material to give the perfect match. Paired with a steel bowl in a choice of four finishes you can make this the centrepiece of your new kitchen.
- Plumbing kit supplied
- Boiling tap compatible
- Fully fabricated at our factory
a. 400 mm
b. 370 mm
c. 210 mm
a. 630 mm
b. 370 mm
c. 210 mm
a. 400 mm
b. 370 mm
c. 210 mm
d. 160mm
e. 370mm
f. 155mm

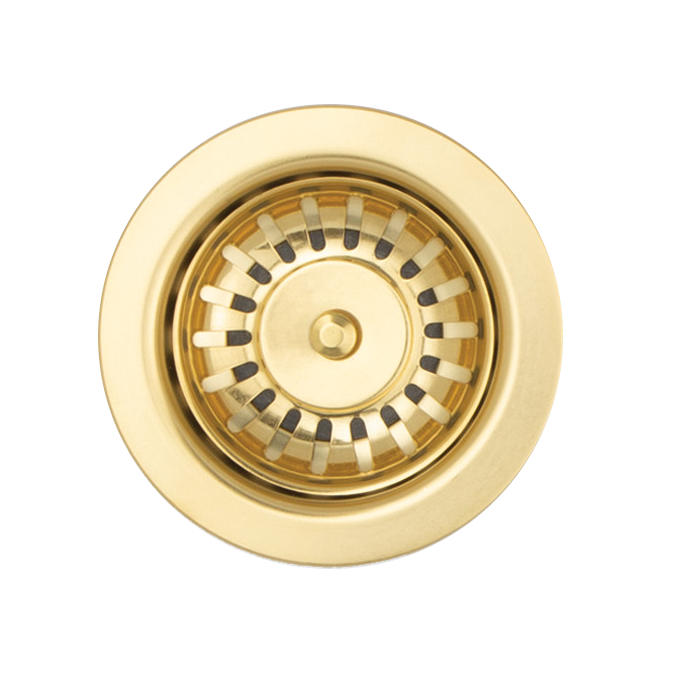

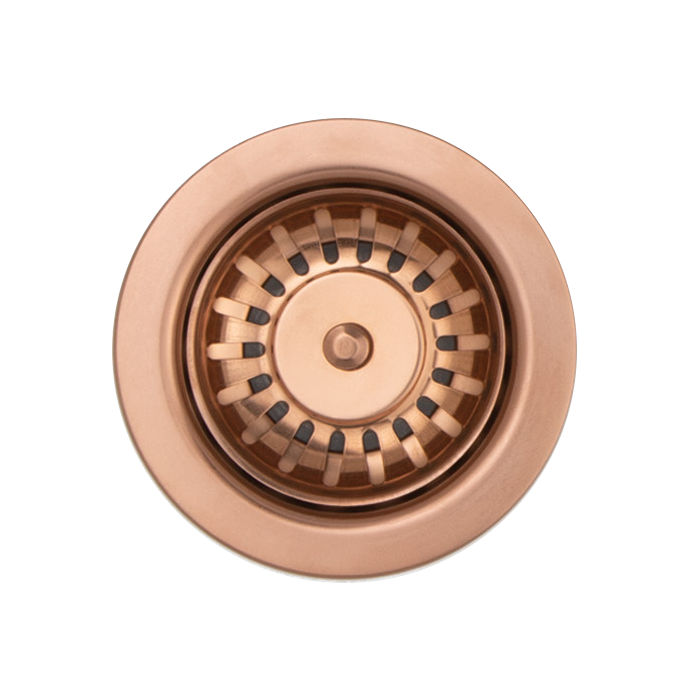

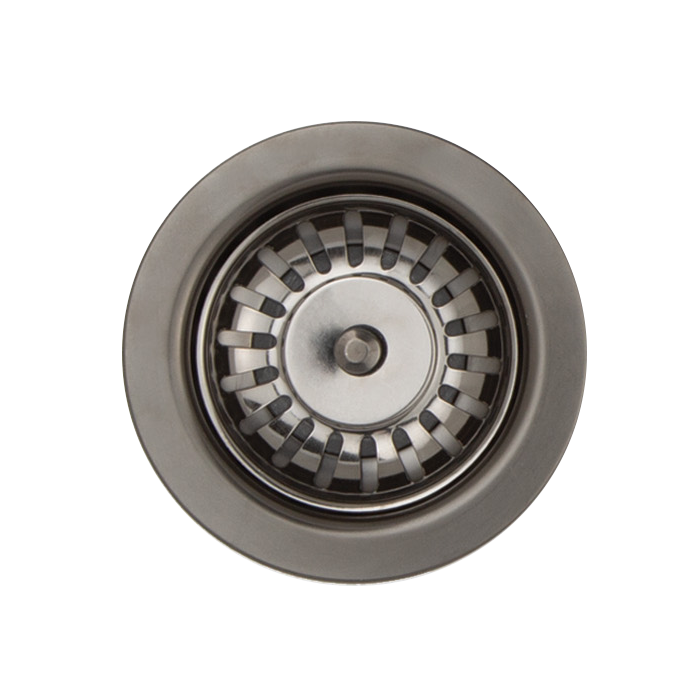

Available in the following colours
Copper
Gold/Brass
Gunmetal
Steel
All minerva® sink modules are supplied as either left or right hand bowl which must be specified at the time of order. Images shown are left hand bowl.
Both steel and acrylic bowls are suitable for use with waste disposal units. Only steel bowls are suitable for use with instant hot water taps.
Whilst minerva® sink modules are made from a solid piece of material, the recessed sections may have a slightly different pattern on some décors due to the spread of the coloured chips. Our acrylic bowls aren’t suitable for use with boiling water taps. Allowing boiling water to run freely into acrylic bowls over a period of time may result in superficial crazing of the acrylic surface. When straining boiling water from vegetables etc. we recommend you always run the cold water tap to help prolong the quality of the sink.
